Single Phase Zero Fired SSR Power Control Panel
ProTherm PTSSR13 SSR Control Panel combines an optional, full featured, dual digital, indicating temperature controller, and an optional, dual digital, over temperature controller, completely assembled. They come pre-tested and pre-wired in a NEMA 4/12 enclosure. Installation is easy, requiring only power supply, load and sensor wiring.
30 Amp Current at 40°C (104°F) Ambient (with no solar load)
*If selecting Ground Fault detection in the panel options dropdown, panel requires grounded supply.
Features:
- Factory pre-wired for quick installation
- Fused Control Power Transformer
- LED Indication of Power On, Heater On, and Overtemperature Alarm
- Step-down Transformer with Primary & Secondary Fusing for 120 volt Control Circuit
- NEMA 4/12 rated Enclosure for Indoor/Outdoor Applications
- SSR for Power Switching with I2t Fusing
- Three-Pole Shutdown Contactor
- 40 Amp Shutdown Contactor
- Universal Sensor Input
The ProTherm PTSSR13 SSR Control Panel combines an optional, full featured, dual digital, indicating temperature controller, and an optional, dual digital, over temperature controller, completely assembled. They come pre-tested and pre-wired in a NEMA 4/12 enclosure. Installation is easy, requiring only power supply, load and sensor wiring.
30 Amp Current at 40°C (104°F) Ambient (with no solar load)
*If selecting Ground Fault detection in the panel options dropdown, panel requires grounded supply.
Features:
- Factory pre-wired for quick installation
- Fused Control Power Transformer
- LED Indication of Power On, Heater On, and Overtemperature Alarm
- Step-down Transformer with Primary & Secondary Fusing for 120 volt Control Circuit
- NEMA 4/12 rated Enclosure for Indoor/Outdoor Applications
- SSR for Power Switching with I2t Fusing
- Three-Pole Shutdown Contactor
- 40 Amp Shutdown Contactor
- Universal Sensor Input

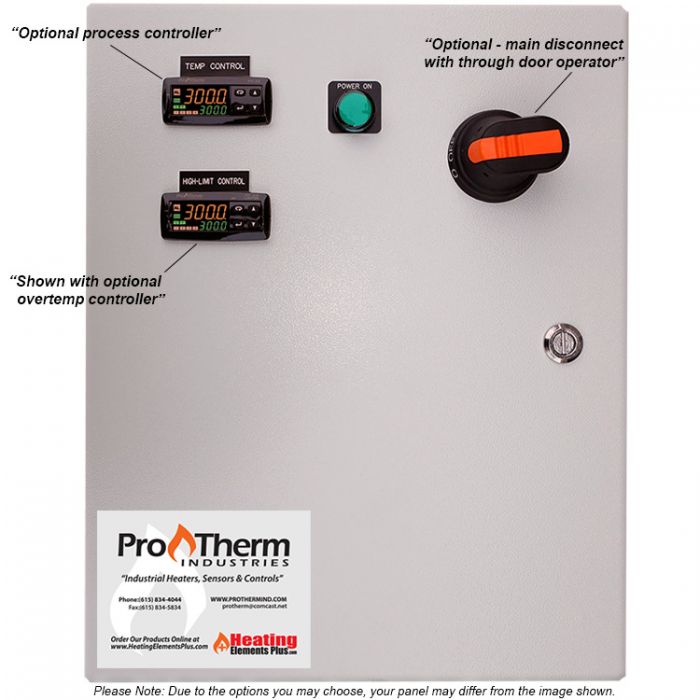

Options:
- Main Disconnect
- Process Controller
- Hi-limit Controllers
- Ground Fault Monitor for Equipment Protection
- Enclosure Heater for Anti-Condensation and Instrument Protection in Ambient Temperatures as low as 0°F
