Mini 15 Amp Single Zone Temperature Controller

More Views

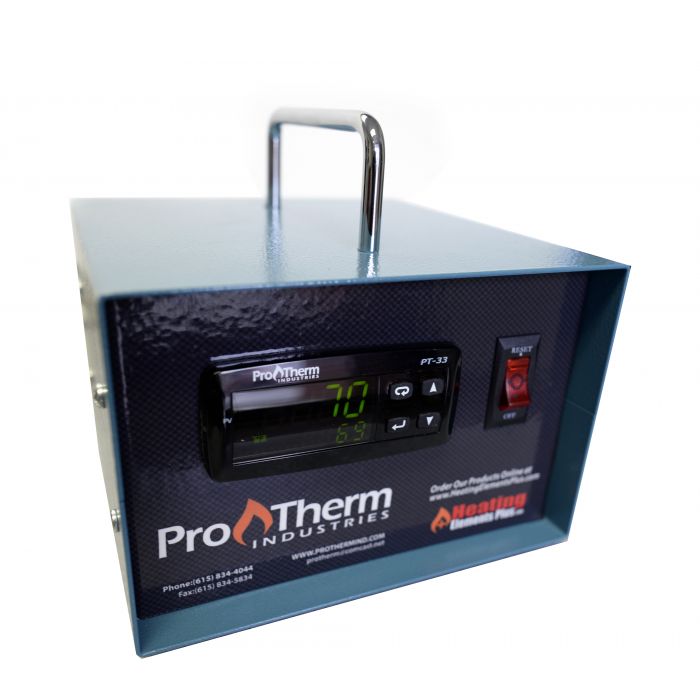

Mini 15 Amp Single Zone Temperature Controller
$385.00

Availability: Out Of Stock

Part Number: MCP15

Currently Out Of Stock!


The MCP 15 Series offers a 1/16" DIN dual digital process controller. For local indication of process valve and setpoint. Control methods include on/off, PID, self tune and manual tune. This controller offers advanced control features for the most demanding temperature or process application.

* Required Fields

$385.00
Description

Details

The ProTherm MCP 15 Series relay output combines the simplicity of a "plug and play" design into one package.

Sold with a type J or K thermocouple input option, and will take Standard or Mini Thermocouple Plugs.
(Please call if you need an RTD input option.)

The MCP 15 Series offers a 1/16" DIN dual digital process controller. For local indication of process valve and setpoint. Control methods include on/off, PID, self tune and manual tune. This controller offers advanced control features for the most demanding temperature or process application.

Panels are completely assembled, pre tested and pre wired in a Nema 12 polyester enclosure.
NEMA4 rating enclosure available - Call for details

Features:

  • High Impact Polyester Enclosure (6.5"L x 3.125"W x 4.0625"D)
  • Clear screw cover
  • UL94 - 5VA non-flammable UV FI rating
  • Relay / On-Off
  • Poured gasket with tongue and groove closure
  • Output recipticals
  • 6' Power input cord with plug included
  • Fused output
