10 w/ft 120v Mid-Temp Self Reg Heat Cable Fluropolymer Jacket

$15.50
CALL FOR AVAILABILITYCALL FOR AVAILABILITY
SKU
2310-11T00
  • Buy 1000 for $13.80 each and save 11%
  • Buy 5000 for $12.40 each and save 20%

10 watts/ft 120 volt mid temperature, self regulating heat trace cable with fluropolymer jacket.

American made heat trace cable

10 watts/ft 120 volt mid temperature, self regulating heat trace cable with fluropolymer jacket.

100 Foot Minimum Order
Please call 615-834-4044 for orders under 100 feet,
as there is an additional cutting fee.

Suggested items for your installation:

Connection Kits
Accessories
High Temp Tape
Line Sensing Thermostat
Ambient Sensing Thermostat
Control Panels



Ideal for pipe tracing, freeze protection, and low temperature process maintenance applications up to 250°F (120°C).
Self-limiting: Automatically adjusts heat output based on surface temperature.
Safe to overlap and insulate.
Can be cut-to-length and terminated in the field.
No temperature controller is required. (If a specific process temperature is needed, a temperature controller is required.)

Specifications:
  • Continuous maintenance temperature: 250°F (120°C) maximum
  • Intermittent exposure temperature: 366°F (185°C) maximum; -40°F (-40°C) minumum
  • 5, 10, or 15 watts/ft (16, 33, 49 watts/m)
  • Supply voltages: 110 - 120VAC or 208 - 277VAC
  • Moisture, chemical, and flame resistant
  • 16AWG bus wires
  • Tinned copper braid resistance: 0.003 ohms/ft (0.010 ohms/m)
  • T-Rating: T3**

** Electrical equipment T-rating codes define the maximum surface temperature that equipment will reach. It is used in hazardous (classified) area applications.

heat cable approvals

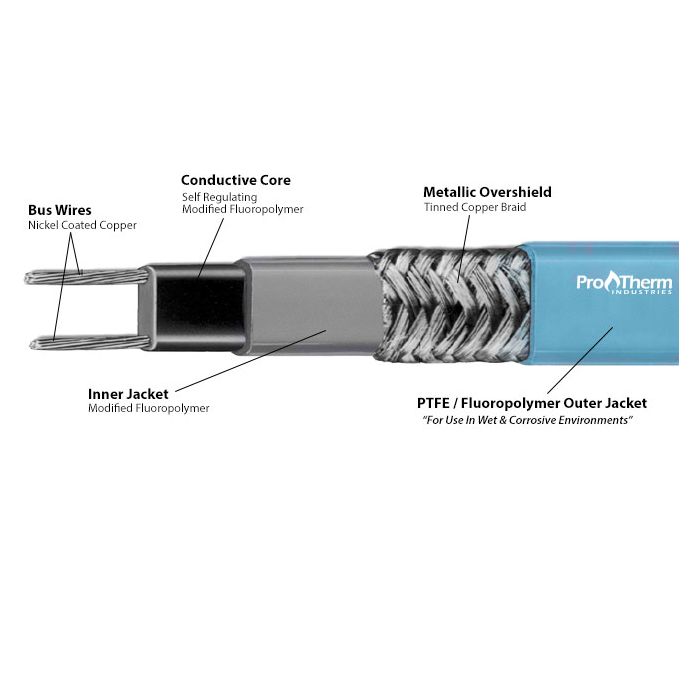

Outer Layer Options

Description Dimensions Purpose
Tinned Copper Metal Braid 0.2" x 0.6"
(6mm x 15mm)
Ordinary applications
Tinned Copper Metal Braid with Fluoropolymer Overjacket 0.2" x 0.6"
(6mm x 15mm)
For use in strong chemical environments (i.e. strong acids)

Maximum Circuit Length in Feet per Circuit Breaker Size

Heat Cable Type Circuit Breaker Size Start-up Temperature
50°F
(10°C)
0°F
(-20°C)
-40°F
(-40°C)
5 watt 120 volt 15 amp
20 amp
30 amp
150
200
240
135
180
220
130
170
210
5 watt 240 volt 15 amp
20 amp
30 amp
250
330
480
230
305
440
220
295
420
10 watt 120 volt 15 amp
20 amp
30 amp
90
120
180
85
110
165
80
105
160
10 watt 240 volt 15 amp
20 amp
30 amp
140
190
280
130
175
260
125
170
250
15 watt 120 volt 15 amp
20 amp
30 amp
70
90
130
65
85
125
60
80
120
15 watt 240 volt 15 amp
20 amp
30 amp
100
135
200
95
125
185
90
120
180

Note: Special consideration must be given for the circuit breaker due to the high initial in-rush currents.

Voltage Adjustment

Power Adjustment Factor
Product Type 208 VAC 277 VAC
5 watt 240 volt 0.78 1.25
10 watt 240 volt 0.86 1.16
15 watt 240 volt 0.92 1.09
