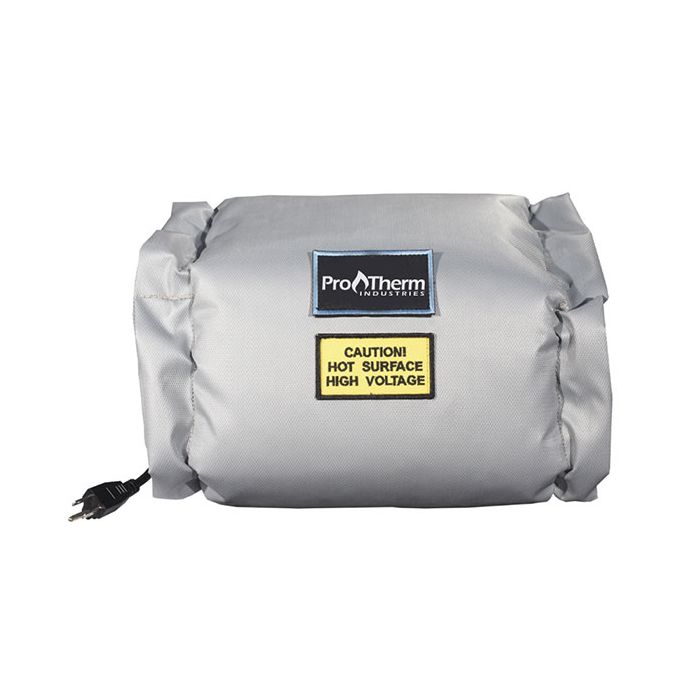

Heat Trace Pipe Freeze Wrap 18Lx06W

$181.65
Ships in 3-5 days
SKU
FPW1806
Flange and Pipe Insulation, Length 18 In., Width 6 In., Insulation Material Mineral Wool and Fiberglass, Jacket Material Silicone Coated Fiberglass Cloth, Fits Valve Type Universal, Thickness 2 In., Approx. ''R'' Factor .48, Max. Temp. 200 Degrees F, Color Gray

ITEM

Frost Protection Insulation

FASTENING SYSTEM

Lacing Anchor, S.S. Wire

LENGTH

18in / 457mm

APPROX "R" FACTOR

.48

WIDTH

6in / 152mm

TEMPERATURE RANGE

-40ºF / -40ºC
200ºF / 93ºC

THICKNESS

3in / 76mm

COLOR

Gray / Grey

INSULATION MATERIAL

Mineral Wool

WEIGHT

1lbs. / 0.45kg

JACKET MATERIAL

Silicone

FIT

Universal

DIAMETER RANGE

2in-4in / 60mm-102mm

CIRCUMFERENCE RANGE

6in-13in / 152mm-330mm

WATTS

90

AMPS

0.75

VOLTAGE

120,240 or 12

POWER CORD TYPE



HEATING CABLE LENGTH

120in / 3048mm

COLD LEAD LENGTH

98in / 2489mm
