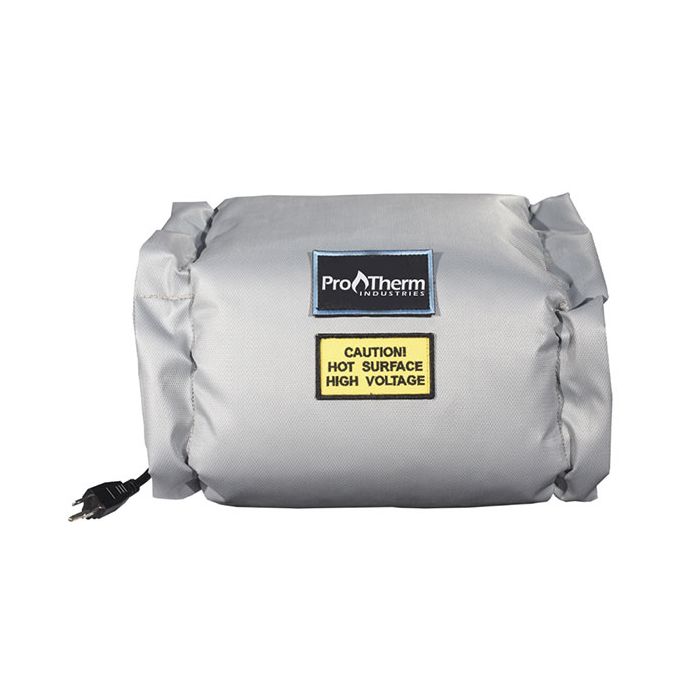

Heat Trace Pipe Freeze Wrap 36Lx12W

$288.81
Ships in 3-5 days
SKU
FPW3612
Flange and Pipe Insulation, Length 36 In., Width 12 In., Insulation Material Mineral Wool and Fiberglass, Jacket Material Silicone Coated Fiberglass Cloth, Fits Valve Type Universal, Thickness 2 In., Approx. ''R'' Factor .48, Max. Temp. 200 Degrees F, Color Gray

ITEM

Frost Protection Insulation

FASTENING SYSTEM

Lacing Anchor, S.S. Wire

LENGTH

36in / 914mm

APPROX "R" FACTOR

.48

WIDTH

12in / 305mm

TEMPERATURE RANGE

-40ºF / -40ºC
200ºF / 93ºC

THICKNESS

3in / 76mm

COLOR

Gray / Grey

INSULATION MATERIAL

Mineral Wool

WEIGHT

6.25lbs. / 2.83kg

JACKET MATERIAL

Silicone

FIT

Universal

DIAMETER RANGE

8in-10in / 203mm-254mm

CIRCUMFERENCE RANGE

25in-31in / 635mm-787mm

WATTS

90

AMPS

0.75

VOLTAGE

120, 240 or 12

POWER CORD TYPE



HEATING CABLE LENGTH

120in / 3048mm

COLD LEAD LENGTH

98in / 2489mm
