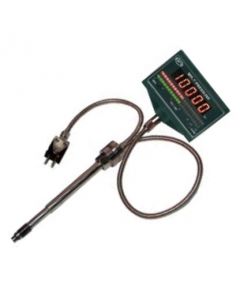

Digital Gauge - Rigid Stem + Flex & Thermocouple

Features:

  • Complete Melt Pressure + Alarm System
  • Large 5-Digit Digital Display (0.8”High)
  • Alarm Relay (NO/NC 240VAC, 5A)
  • LED Bar Graphs - Process & Set Value
  • Repairable Sensor
  • 90-260VAC Power
  • 6” Stem
  • 30” Flex Hose (MG200)
  • 1% Combined Error
  • 750°F (400°C) Rating
  • Ranges from 0-500 to 0-20,000psi
  • Standard Diaphragm - Inconel
  • Process Value Re-Transmission ( 4-20mA)
  • Standard Thread (1/2-20UNF)
  • Thermocouple J (Field Replaceable)

Options:

  • Re-Transmission Options: 0-5, 0-10VDC & 0-20mA
  • 12" Stem
  • 60" Flex Hose (MG200)
  • Optional Diaphragms: Hastelloy, Titanium Nitride, Incoloy Tips & Threads
  • Threads (M18x1.5)
  • Power: 12-24VDC
  • Mercury FREE
  • Temperature Sensors: K, Pt100 & RTD

Call 615-834-4044 to order with options not listed below.
