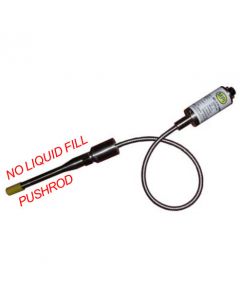

Pushrod - Rigid Stem + Flex

The diaphragm transmits pressure through the PUSHROD. The electronic temperature compensation circuit ensures high temperature stable pressure readings. Four active arm wheatstone bridge strain gage ensures high accuracy. The rigid stem makes installation fast and easy.

18” flexible capillary with stainless armour coating. This provides further thermal isolation and installation flexibility.

The transition from rigid stem to flexible capillary must be maintained below 247°F (120°C).

Features:

  • NO LIQUID FILL
  • Standard 3.33mV/V
  • 6pin Bayonet Connector
  • 6” Stem
  • 1% combined error
  • 80% Output Calibration
  • Interchangeable with all Competitor’s models
  • 1000°F (540°C) Rating
  • Ranges from 5000 to 10,000 psi
  • Standard Inconel Diaphragm

Options:

  • Output option - 2.5mV/V, 4-20mA, 0-5VDC & 0-10VDC
  • Connector option - 8 pin - 6 pin-CANNON
  • 12" stem
  • 30" Flex hose (MR200)
  • Optional diaphragms - Hastelloy, Titanium Nitride, Inconel Tip & Diamond Particulate
  • Thread Options

Call 615-834-4044 to order transducers with options not listed below.
