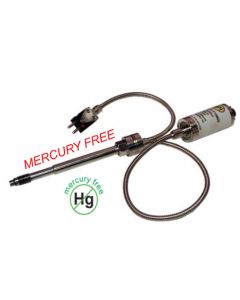

Mercury Free - Pressure + Temperature

The diaphragm transmits pressure through the fluid filled capillary for high temperature stability. Four active arm wheatstone bridge strain gage ensures high accuracy. The rigid stem makes installation fast and easy. Food grade - mercury free.

18”flexible capillary with stainless armour coating. This provides further thermal isolation and installation flexibility.

Temperature sensor mounted behind diaphragm. This provides temperature and pressure measurement from a single hole.
The temperature sensor is field replaceable without removing pressure sensor.

Features:

  • Mercury Free Fill
  • Standard 4.20mA
  • 6pin Bayonet Connector
  • 6, 9 and 12” Stems
  • 0.5% combined error
  • 80% Output Calibration
  • Interchangeable with all Competitor’s models
  • 750°F (400°C) Rating
  • Ranges from 1000 to 20,000psi
  • Standard Inconel Diaphragm
  • Thermocouple J
  • Field Replaceable

Options:

  • Output option - 2.5mV/V, 4-20mA, 0-5VDC & 0-10VDC
  • Connector option - 8 pin - 6 pin-CANNON
  • 12" stem
  • 30" Flex hose (MF200)
  • Optional diaphragms - Hastelloy, Titanium Nitride, Inconel Tip & Diamond Particulate
  • Optional Threads
  • Temperature Sensors - Thermocouple K, PT100 RTD sensor

Call 615-834-4044 to order transducers with options not listed below.
