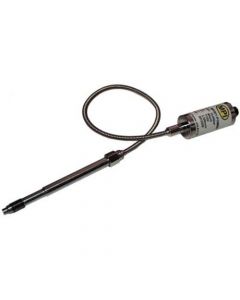

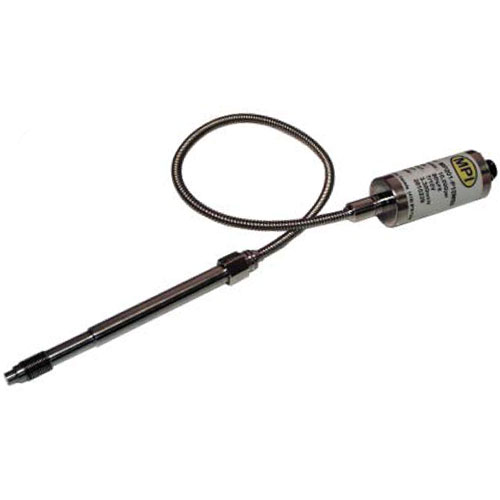

Transmitters - Rigid Stem + Flex

The diaphragm transmits pressure through the fluid filled capillary for high temperature stability. Four active arm wheatstone bridge strain gage ensures high accuracy. The rigid stem makes installation fast and easy.

18”flexible capillary with stainless armour coating. This provides further thermal isolation and installation flexibility.

Features:

  • Fluid filled system
  • Output 4-20mA
  • 6 pin Bayonet Connector
  • 6, 9 and 12” Stems
  • 0.5% combined error
  • 80% Output Calibration
  • Interchangeable with all Competitor’s models
  • 750°F (400°C) Rating
  • Ranges from 1000 to 30,000 psi
  • Standard Inconel Diaphragm

Options:

  • Output option - 0-5VDC, 0-10VDC
  • Connector option - 8 pin - 6 pin CANNON
  • 30" Flex hose (MT200)
  • Optional diaphragms - Hastelloy, Titanium Nitride, Inconel Tip & Diamond Particulate
  • Optional Thread

Call 615-834-4044 to order transmitters with options not listed below.
