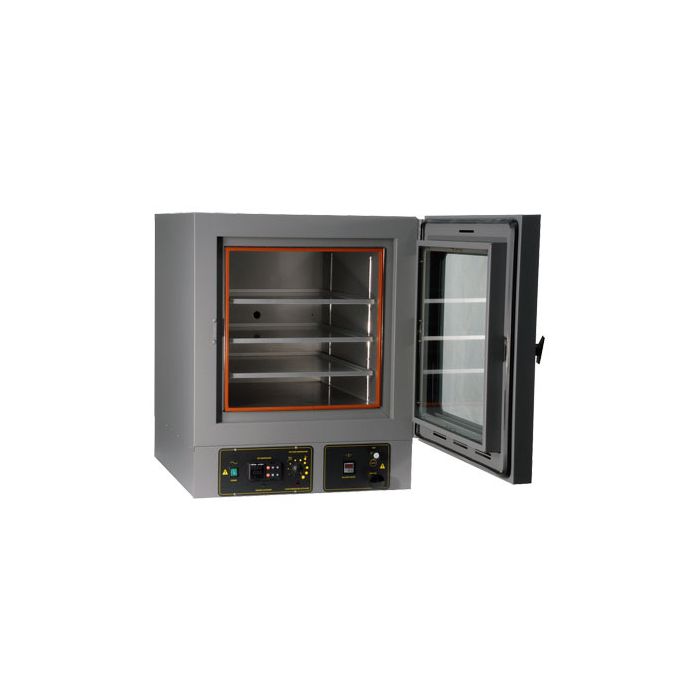

SVAC4 Vacuum Oven, 4.5 Cu.Ft.
The SVAC4 is durably constructed with seamless welds and strong bracing. All vacuum ovens are built with a stainless steel chamber for exceptional durability. Our double plenum design meets CE safety requirements resulting in a cool outer surface. Our unique cross-flow ventilation forces inert gas to fill the entire chamber. To achieve required vacuum levels, users can choose from a 3/8 inch orifice or a KF25 fitting to withstand heavy use and minimize draw-down time. Maximum permitted end vacuum is 10 mTorr. Leak rate is 10 mTorr per hour.
Price Includes Freight & Pallet.
Can take 4-6 weeks for delivery.
The SVAC4 is durably constructed with seamless welds and strong bracing. All vacuum ovens are built with a stainless steel chamber for exceptional durability. Our double plenum design meets CE safety requirements resulting in a cool outer surface. Our unique cross-flow ventilation forces inert gas to fill the entire chamber. To achieve required vacuum levels, users can choose from a 3/8 inch orifice or a KF25 fitting to withstand heavy use and minimize draw-down time. Maximum permitted end vacuum is 10 mTorr. Leak rate is 10 mTorr per hour.
The doors on this unit have positive latch handles with spring-loaded glass to facilitate a good vacuum seal without hinge binds that shorten the gasket life.
Please note that this vacuum oven does not include a pump or related accessories.
Note: Replaces model 1465
- Capable of 40 Step Ramp And Soak Profiles, Or 4 Files With 10 Steps Per File
- Cross Ventilation Air Flow Design
- Achieve Impressive Vacuum Levels
- Size 4.5 Cu. Ft.
- Built-in Overtemperature Protection
- 24 Month Limited Warranty
| MODEL | SVAC4 | |
| Agency Approval | TUV- CUE | |
| Shelving | 3 Supplied | |
| Heat-up (min) | 90 minutes at 150° C | |
| Temperature Control | 0.1°C | |
| Temperature Uniformity | +/-6% of set point | |
| Temperature Range | 10°C above ambient to 220°C | |
| Exterior Dimensions WxDxH in. (cm) | 26.5 x 34.5 x 32.3 (67.4 x 87.7 x 82) | |
| Interior Dimensions WxDxH in. (cm) | 18 x 24 x 18 (45.7 x 60.9 x 45.7 ) | |
| Capacity | 4.5 Cu.Ft. (127 L) | |
| Communications | RS485 | |
| Nominal Voltage 50/60HZ (V) | 110-120/220-240 | |
| Maximum Energy Consumption (W) | 1560/1680 | |
| Vacuum Range | in Hg (-3.0 to -29.9), kPa (-10 to -101), mbar (-101 to -1010) | |
| Display Vacuum Range (Display Resolution) | in Hg (0 to 29.9), kPa (5 to -101), bar (0.05 to -1.013) | |
All specifications are determined by using average values on standard equipment at an ambient temperature of 25°C (77°F) and line voltages within +/-10% of unit type (115V/230V). Temperature specifications follow DIN 12880 methodology. We reserve the right to change specifications at any time.
