Heat Trace Cable For Freeze Protection

$4.69
In stock
SKU
27
  • Buy 1000 for $4.17 each and save 11%
  • Buy 5000 for $3.75 each and save 20%

Self regulating heat trace cable
with thermoplastic elastomer jacket.
Protects water lines from freezing.
Can be used on metal or PVC pipes*.
Exposure temperature up to 150°F

3, 5, 8 or 10 watt? Click For Help
120 or 240 volt.

Installation Kits & Accessories

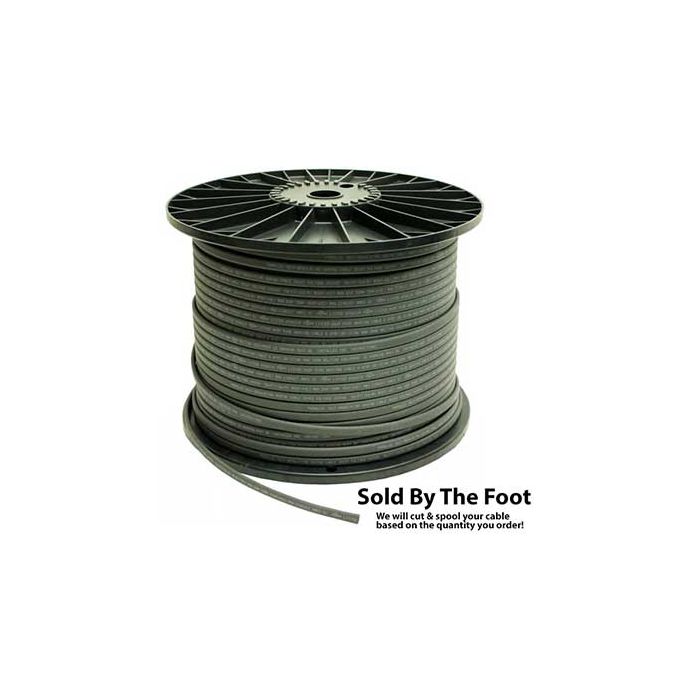

Sold by the foot!

American made heat trace cable

Ideal for freeze protection for residential and commercial water lines.

Self-limiting: Automatically adjusts heat output based on surface temperature.
Safe to overlap and insulate.
Can be cut-to-length and terminated in the field.
No temperature controller is required.

2700 series graph

Specifications:

  • 3, 5, 8, or 10 watts/ft (10, 16, 26, or 33 watts/m)
  • Supply voltages: 110 - 120VAC or 208 - 277VAC
  • Moisture, chemical, and flame resistant
  • 16AWG bus wires
  • Insulation must be used to prevent heat loss.

heat cable approvals

*2E approved for 3 watts/ft and 5 watts/ft only.

2700 series 120 volt chart

2700 series 240 volt chart

Note: Special consideration must be given for the circuit breaker due to the high initial in-rush currents.

Voltage Adjustment

Power Adjustment Factor
Product Type 208 VAC 277 VAC
3 watt 240V 0.75 1.28
5 watt 240V 0.86 1.16
8 watt 240V 0.91 1.10
10 watt 240V 0.93 1.08

Comparable to BriskHeat SLCAB3120BP
