Air Heater Information

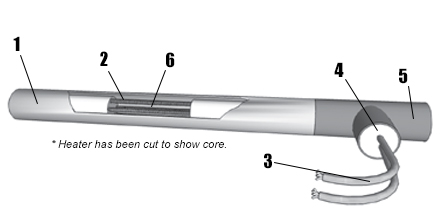

Air Heater - Standard Construction

Call us at 615-834-4044 for custom configurations or technical details.

  1. 1/2”, 5/8” or 3/4 diameter 304 Stainless Steel Sheath.
  2. Nickel-Chromium Coils.
  3. High temperature leads or 3 pin connector.
  4. Epoxy Seal
  5. Copper Tee
  6. 120 Volt and 240 Volt

Air Heater Layout

Air Heater - Options

  • Male or Female pipe thread on inlet or outlet.
  • Brass or Stainless Steel fittings.
  • Flanges
  • SJO Cord
  • Elbow on Outlet
  • Stainless Steel Tee
  • Various volts and Watts
  • Custom configurations
  • 1/2”, 5/8” and 3/4” diameters available
  • Optional Thermocouple at outlet for temperature control.

Specifications:

  • Maximum Amps: 10
  • Maximum CFM: 10
  • Use clean air only.
  • Heat air to temperatures as high as 1000°F.

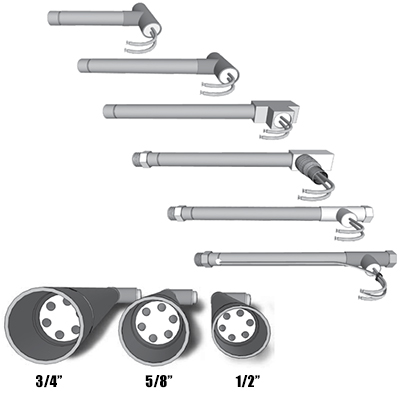

Air Heater Options



Air Heater Applications

We manufacture and stock several variations of 1/2” diameter air heaters for:

  • Heat Staking
  • Shrink Fitting
  • Plastic Welding
  • Laminating
  • Sealing
  • Drying

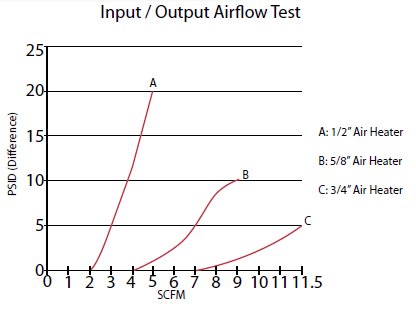

Air Heater Performance

Air heater performance chart

Optional Air Heater Fittings

  • 1/8” FPT fitting on inlet
  • 3/8” MPT fitting on inlet
  • 1/8” FPT fitting on outlet
  • 3/8” MPT fitting on outlet
  • 1/8” FPT fitting on inlet, 1/8” FPT on outlet
  • 3/8” MPT fitting on inlet, 3/8” MPT on outlet
  • 1/8” FPT fitting on inlet, 3/8 MPT on outlet
  • 3/8” MPT fitting on inlet, 1/8” FPT on outlet
