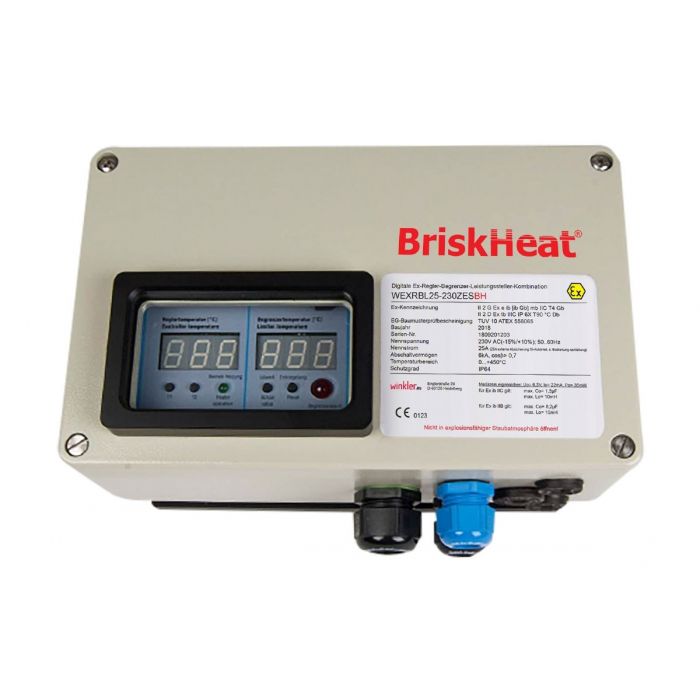

ATEX Temperature Controller/Limiter Combo

$2,479.00
Ships in 2-3 weeks
SKU
WEXRBL25-230ZESBH
ATEX Temperature Controller For Use with ATEX Heaters. 230 VAC. Programmable Digital Controller with Celcius Display. ATEX II 2G/2D. Scroll down for complete description.

ATEX Temperature Controller For Use with ATEX Heaters. 230 VAC. Max Output 25 A. Dimensions 260 mm x 160 mm x 135 mm. Includes 2 Ex-PT100 RTD Temperature Sensor Inputs. Programmable Digital Controller with Celcius Display. Temperature Control Range 0°C to 150°C. Maximum Controller Operating Exposure Temperature Range -20°C to 40°C. For Use in Potentially Explosive Gas and Dust Atmospheres. IP64. ATEX II 2G Ex e ib [ib Gb] mb IIC T4 Gb, II 2D Ex tb IIIC IP6X T90°C Db, EC-type examination certificate TÜV 10 ATEX 556065.

  • Hazardous-area rated temperature controller with high temperature limiter - ATEX Gas and Dust
  • Suitable for wet areas or outdoor use - IP 64
  • Large display with clear glass window for easy viewing
  • Include adjustable energy limiter to slow heat-up rates on low resistance elements
  • Sensor break and short signal indicators

Explosion protection marking:

Gas atex certification icon 2G Ex e ib [ib Gb] mb IIC T4 Gb
Dust atex certification icon 2D Ex tb IIIC IP6X T90°C Db

EC-type examination certificate
TÜV 10 ATEX 556065


Specifications:

  • Voltage: 195-253 (230 nominal) VAC 50-60 Hz
  • Max. Amp Load: 25 amp
  • Temperature Control Type: On/Off
  • Temperature Control Range: 0°C to 450°C (32°F to 42°F)
  • Temperature Display Units: °C
  • Sensor Inputs: 2 PT100 RTD (2 or 3-wire) terminals for control and limit
  • Limit Switching Point: 2°C below set point temperature
  • Hysteresis: 2° K
  • Alarms: LED indicators with dry contacts
  • External Protection: 25 amp circuit breaker
  • Input and Output Power Connections: Strain relief cable glands included
  • Temperature Protection: Reversible temperature switch for enclosure
  • Enclosure Type: Robust aluminum enclosure with mounting plates and hardware
  • Enclosure Rating: IP64
  • Ambient Operating Range: -20°C to 40°C
  • Enclosure Dimensions: 260 mm x 160 mm x 135 mm (10.2 in x 6.3 in x 5.3 in)
  • Weight: 6 kg (13 lbs)

Various liquids, gasses, and even solids are often stored in bulk containers. Common containers include drums, IBC tanks, and gas bottles. In order to effectively protect the contents from cold, reduce viscosity, or increase efficiency for easy dispensing, the contents must be kept warm. If the temperatures of the contents fall below desired levels, the contents could be ruined or unable to dispense at all. Many of these containers are in hazardous areas where ATEX certification is a requirement for the type of heaters permitted for use.
