160 Amp Resistive Load Contactor Enclosure

$598.72
CALL FOR AVAILABILITYCALL FOR AVAILABILITY
SKU
CB-160

160 Amp Resistive Load Contactor Enclosure

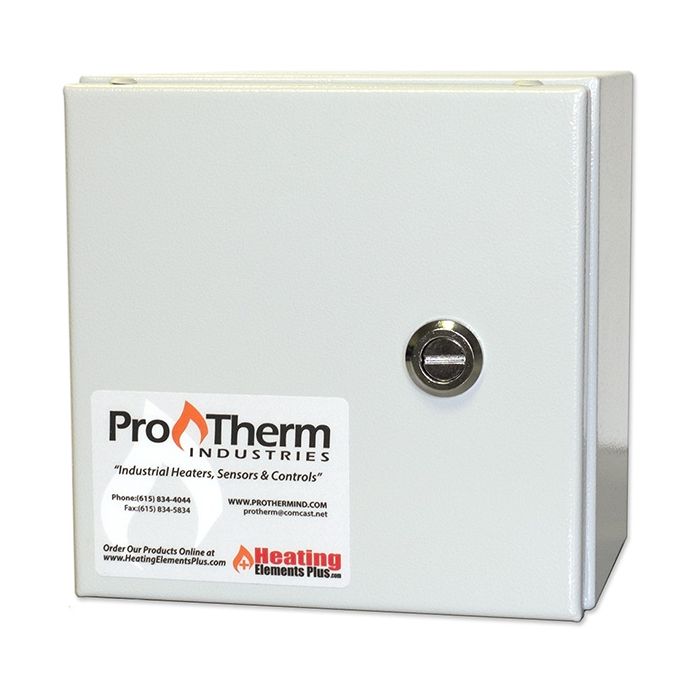

Notice: Picture shows powder coated metal enclosure, and the optional plastic and fiberglass enclosures may differ.

160 Amp Resistive Load Contactor Enclosure

Coil Voltage Auxiliary
Contacts
Resistive
Load
(AC1)
UL HP Ratings (AC3 Motor Load)
Single Phase Three Phase
115V 230V 200V 230V 460V 575V
120VAC (50/60Hz) 2 N.O.
2 N.C.
160 10HP
(100A)
20HP
(56A)
30HP
(88A)
40HP
(104A)
75HP
(96A)
75HP
(77A)
208VAC (60Hz)
230VAC (50/60Hz)
480VAC (60Hz)
  • NEMA 4 Powder Coated Metal Enclosure (shown) - UL Type 1, 3R, 4, 12, 13/IP66 - UL FILE #E902044
  • NEMA 4 High Impact Polyester & Fiberglass Enclosure (Optional)
  • Panel includes three pole contactor with (1) N.O & (1) N.C auxilliary contacts up to 40 amp, and (2) N.O & (2) N.C contacts on units 50 - 275 amp.
  • Contactor available with 120VAC, 208VAC, 230VAC & 480VAC coils.
  • Coil voltage is pre-wired to terminal blocks for easy wiring.
  • 24VAC Contactor available (call)

Notice: Picture shows powder coated metal enclosure,
and the optional plastic and fiberglass enclosures may differ.

Please allow 3-5 days for delivery.
