25 Amp Resistive Load Contactor Enclosure
$322.44
CALL FOR AVAILABILITY SKU
CB-25
25 Amp Resistive Load Contactor Enclosure

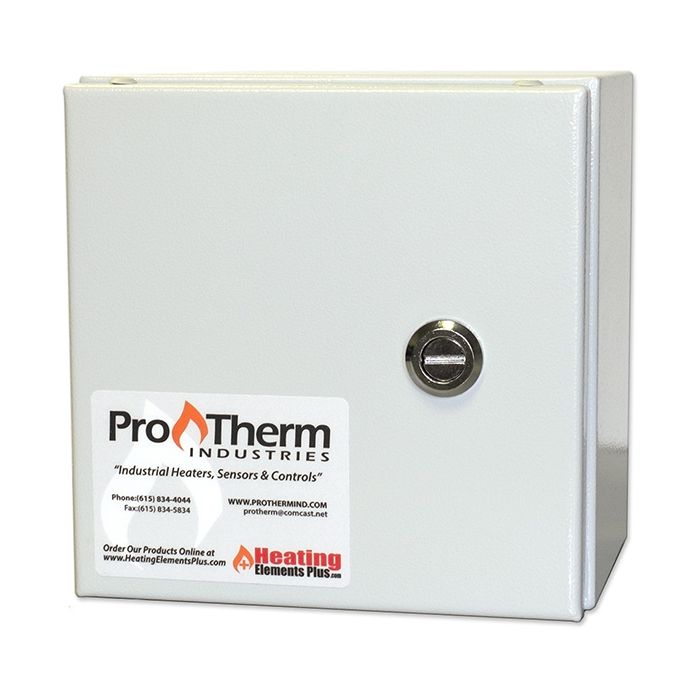

Notice: Picture shows powder coated metal enclosure, and the optional plastic and fiberglass enclosures may differ.
25 Amp Resistive Load Contactor Enclosure
| Coil Voltage |
Auxiliary Contacts |
Resistive Load (AC1) |
UL HP Ratings (AC3 Motor Load) | |||||
|---|---|---|---|---|---|---|---|---|
| Single Phase | Three Phase | |||||||
| 115V | 230V | 200V | 230V | 460V | 575V | |||
| 120VAC (50/60Hz) |
1 N.O. 1 N.C. |
25 |
0.75HP (13.8A) |
2HP (12A) |
3HP (10.6A) |
5HP (15.2A) |
7.5HP (11A) |
10HP (11A) |
| 208VAC (60Hz) | ||||||||
| 230VAC (50/60Hz) | ||||||||
| 480VAC (60Hz) | ||||||||
- NEMA 4 Powder Coated Metal Enclosure (shown) - UL Type 1, 3R, 4, 12, 13/IP66 - UL FILE #E902044
- NEMA 4 High Impact Polyester & Fiberglass Enclosure (Optional)
- Panel includes three pole contactor with (1) N.O & (1) N.C auxilliary contacts up to 40 amp, and (2) N.O & (2) N.C contacts on units 50 - 275 amp.
- Contactor available with 120VAC, 208VAC, 230VAC & 480VAC coils.
- Coil voltage is pre-wired to terminal blocks for easy wiring.
- 24VAC Contactor available (call)
Notice: Picture shows powder coated metal enclosure,
and the optional plastic and fiberglass enclosures may differ.
Please allow 3-5 days for delivery.
