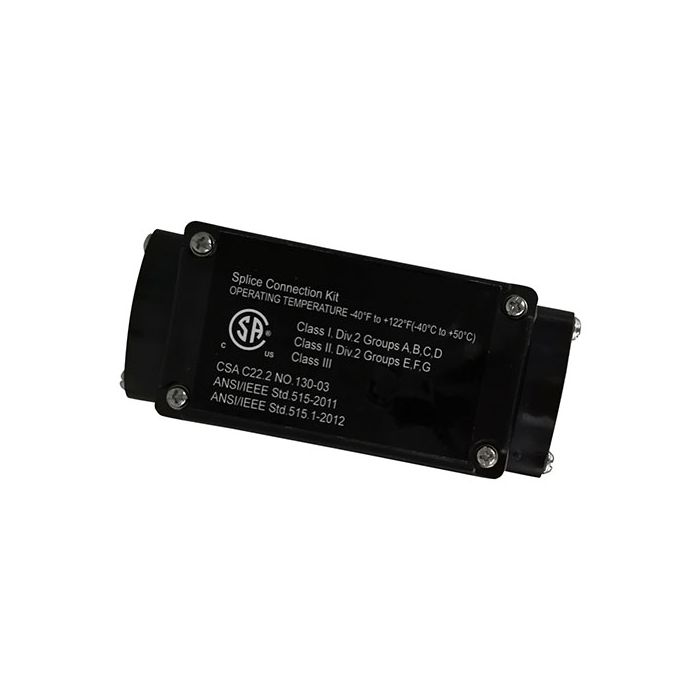

Low-Profile Inline Splice Connection Kit

$56.50
In stock
SKU
PT-JHS-GET

Provides a low-profile, inline, splice connection for low temp and mid-temp, self-regulating heating cable.
Enough to complete one inline splice connection.

Provides a low-profile, inline, splice connection for low temp and mid-temp, self-regulating heating cable.
Enough to complete one inline splice connection.
Low-profile design makes insulating heating cable connections easy.
For use in hazardous area locations with low and mid-temp cable only (CSA approved).
For use in non-hazardous area locations with low and mid-temp cable (non-CSA approved).

Ordinary Locations
Hazardous Location
T6 rated 3, 5, 8, 19 W/ft (10, 17, 25, 31 W/m)
T5 rated 12 W/ft (40 W/m)
Class I Division 2 Groups A, B, C, D
Class II Division 2 Groups E, F, G
Class III

Kit Contents
1 In-line splice housing
2 Watertight sealing gaskets
2 Housing covers with screws
2 Watertight sealing grommets
2 Pressure seal ends with screws

Designed to provide a long and efficient service life with function, reliability, and safety in mind.
Durable corrosion-resistant enclosures provide premium protection for your electrical connections.
Approved for use in non-hazardous area (ordinary) locations with HTR, HTS, HTP series heating cable.
Approved for use in hazardous area (Class Ⅰ, Div 2; Class Ⅱ, Div2; Class Ⅲ) locations with HTR series heating cable only.
Installed on the pipe under insulation and/or cladding.
Rated NEMA 4X.
Specifications

Maximum current: 32A
Voltage: 110-120V, 208-277V
Maximum Continuous Exposure Temperature (T5): 212℉(100℃)
