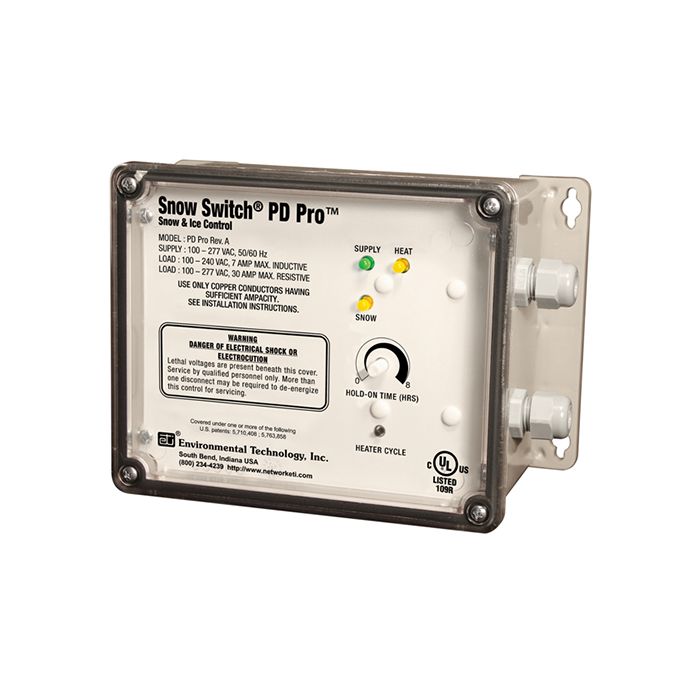

PD Pro Snow & Ice Controller
CALL FOR AVAILABILITY
Features & Benefits
- Automatic snow and ice melting control minimizes operating costs
- Rated for up to 7 amp inductive loads for pilot duty applications and resistive loads up to 30 amps
- Weather-resistant NEMA 4X enclosure
- C-UL-US Listed for Temperature Regulating Equipment
- Adjustable Hold-On timer continues heater operation after snow and ice stop to ensure complete melting
- Dual sensor capability to meet site performance requirements
- Automatic and manual-override operator controls for changing environmental conditions
- Optional remote control operation for added convenience
Snow and ice melting systems control with pilot duty
Utilizing standard Environmental Technology snow and ice sensors (sold separately), the automatic Snow Switch® Model PD Pro control is used in snow and ice detection and melting for pavement, sidewalks, loading docks, roofs, gutters and downspouts in commercial and residential environments.
ETI Proprietary Moisture, Temperature Sensors
The PD Pro interfaces with up to two standard Environmental Technology sensors to meet site requirements. The CIT–1, GIT–1, and SIT–6E sensors reliably detect snow and ice melting in gutter and pavement applications.
Automatic and Manual-Override
The PD Pro features automatic and manual-override operator controls. The adjustable Hold-On timer continues heater operations up to 8 hours after snow or ice conditions end to ensure complete melting. The Heater Cycle control button allows manual initiation or cancellation of a heating cycle. The optional RCU–3 remote control unit can be located for convenient monitoring and control. These flexible control options provide complete snow melting and water evaporation at a low operating cost.
When Pilot Duty is a Better Choice
The PD Pro weighs only 3 pounds and measures 5 1/2” (L) x 8 1/8” (W) x 4 3/8” (H). Comprehensive instruction manuals simplify installation and operation. These products are also supported by Environmental Technology Technical Support.
The PD Pro is a capable snow and ice control for medium-sized applications whose features and power requirements do not require an APS or EUR Series control panel.
