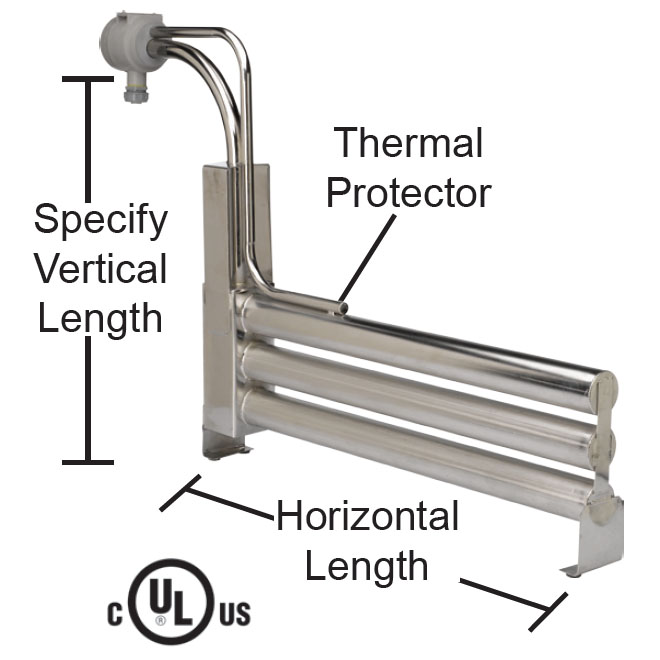

Vertical Stack L Shape Triple Bayonet 24,000 watt - 44" Horizontal - 50" Vertical

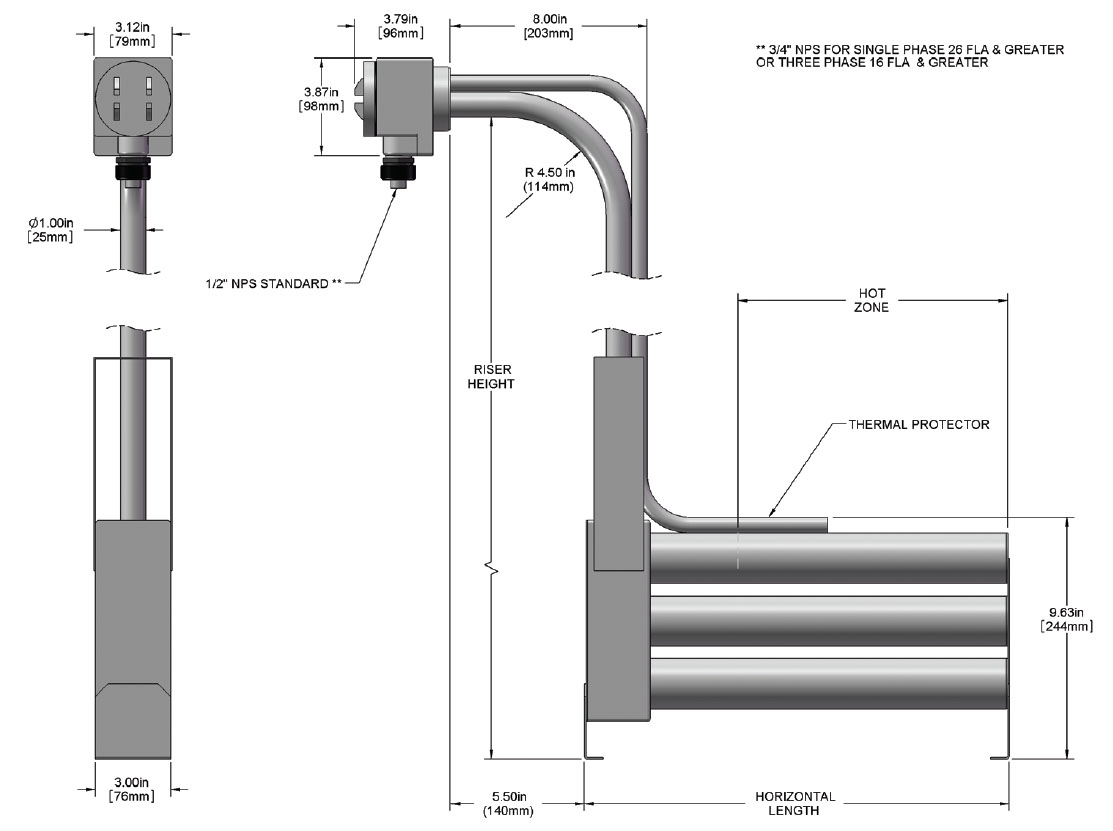

Vertical Stack L Shape Triple Bayonet 24,000 watt drawing
CALL FOR AVAILABILITY BEFORE ORDERING!
Vertical Stack L Shape Triple Bayonet 24,000 watt - 44" Horizontal - 50" Vertical
Vertical Stack L Shape Triple Bayonet 24,000 watt drawing

Vertical Stack Triple Bayonet 24000 watt – 44″ Horizontal – 50″ Vertical

$2,326.20

24,000 watt, Vertical Stack, L-shaped, triple bayonet, over the side heater. Steel, 304 or 316 stainless steel or titanium. 44″ horizontal hot zone and 50″ vertical length. Thermal protection options. 36″ wire with conduit. 240 or 480 volt. 1 or 3 phase

Price Includes Freight & Pallet.
Can take 4-6 weeks for delivery.

Product total $2,326.20
Options total $0.00
Grand total $2,326.20
SKU: PRT-VL3B-44-50 Category:
Guaranteed Safe Checkout
FEATURES
  • Heavy wall metal sheaths available in steel, 304 stainless steel, 316 stainless steel and titanium.
  • Watt densities up to 35 watts/square inch (5.4 w/cm²).
  • Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
  • Grounded construction and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).
  • Certification: cULus (except steel and 600 volts)
SPECIFICATIONS
  • 24,000 watts
  • 240 or 480 volts
OPTIONS AVAILABLE (CONSULT FACTORY)
  • Resettable thermal protectors require additional control components
  • Lower watt densities for highly viscous solutions.
  • Custom configurations and lengths
  • Custom wire and conduit lengths
