ITEM |
Frost Protection Insulation |
FASTENING SYSTEM |
Lacing Anchor, S.S. Wire |
|
LENGTH |
18in / 457mm |
APPROX “R” FACTOR |
.48 |
|
WIDTH |
24in / 610mm |
TEMPERATURE RANGE |
-40ºF / -40ºC 200ºF / 93ºC |
|
THICKNESS |
3in / 76mm |
COLOR |
Gray / Grey |
|
INSULATION MATERIAL |
Mineral Wool |
WEIGHT |
7lbs. / 3.18kg |
|
JACKET MATERIAL |
Silicone |
FIT |
Universal |
|
DIAMETER RANGE |
2in-4in / 60mm-102mm |
CIRCUMFERENCE RANGE |
6in-13in / 152mm-330mm |
|
WATTS |
90 |
AMPS |
0.75 |
|
VOLTAGE |
120, 240 or 12 |
POWER CORD TYPE |
|
| HEATING CABLE LENGTH |
240in / 6096mm |
COLD LEAD LENGTH |
98in / 2489mm |

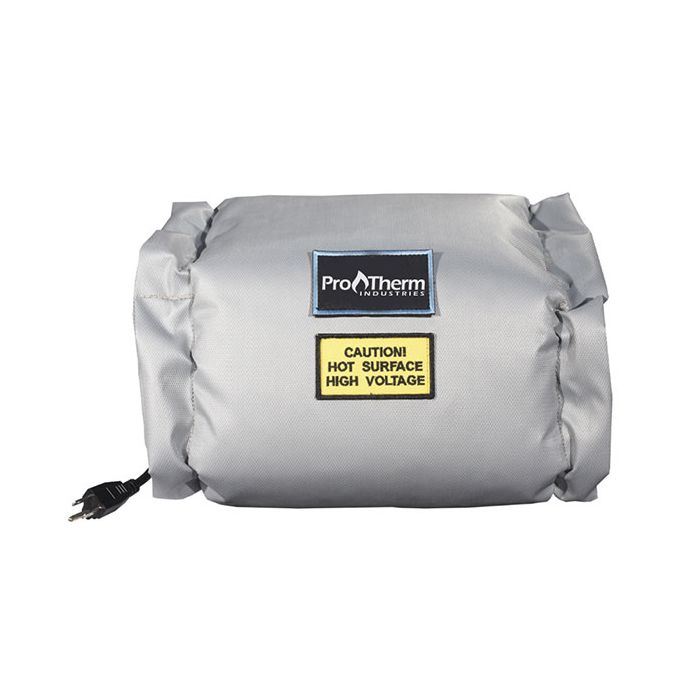

Heat Trace Pipe Freeze Wrap 18Lx24W
$307.44
Flange and Pipe Insulation, Length 18 In., Width 24 In., Insulation Material Mineral Wool and Fiberglass, Jacket Material Silicone Coated Fiberglass Cloth, Fits Valve Type Universal, Thickness 2 In., Approx. ”R” Factor .48, Max. Temp. 200 Degrees F, Color Gray
| Weight | 7 lbs |
|---|
