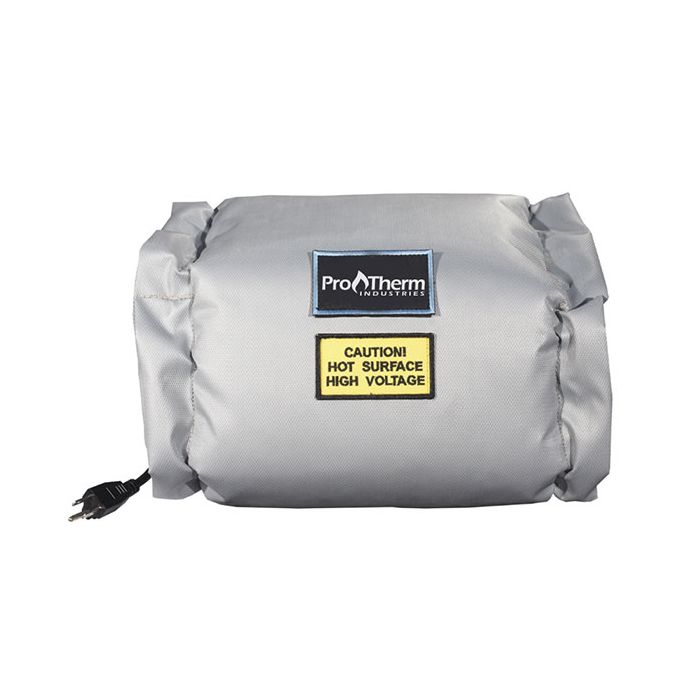

Heat Trace Pipe Freeze Wrap 24Lx24W

$368.67
Ships in 3-5 days
SKU
FPW2424
Flange and Pipe Insulation, Length 24 In., Width 24 In., Insulation Material Mineral Wool and Fiberglass, Jacket Material Silicone Coated Fiberglass Cloth, Fits Valve Type Universal, Thickness 2 In., Approx. ''R'' Factor .48, Max. Temp. 200 Degrees F, Color Gray

ITEM

Frost Protection Insulation

FASTENING SYSTEM

Lacing Anchor, S.S. Wire

LENGTH

24in / 610mm

APPROX "R" FACTOR

.48

WIDTH

24in / 610mm

TEMPERATURE RANGE

-40ºF / -40ºC
200ºF / 93ºC

THICKNESS

3in / 76mm

COLOR

Gray / Grey

INSULATION MATERIAL

Mineral Wool

WEIGHT

8.25lbs. /3.74kg

JACKET MATERIAL

Silicone

FIT

Universal

DIAMETER RANGE

4in-6in / 102mm-152mm

CIRCUMFERENCE RANGE

13in-19in / 330mm-483mm

WATTS

180

AMPS

1.5

VOLTAGE

120, 240 or 12

POWER CORD TYPE



HEATING CABLE LENGTH

120in / 3048mm

COLD LEAD LENGTH

98in / 2489mm
