18L x 06W Removable Hub Insulation Jacket

$293.48
Ships in 3-5 days
SKU
IH1806

Hub Insulation Jacket

ISOCOVERS Insulation Systems offer a broad base of superior, energy-saving solutions that conserve energy, preserve process temperatures and improve workplace safety. ISOCOVERS Insulation Systems are used on various applications within the process industry where heat conservation and process temperature are concerns.

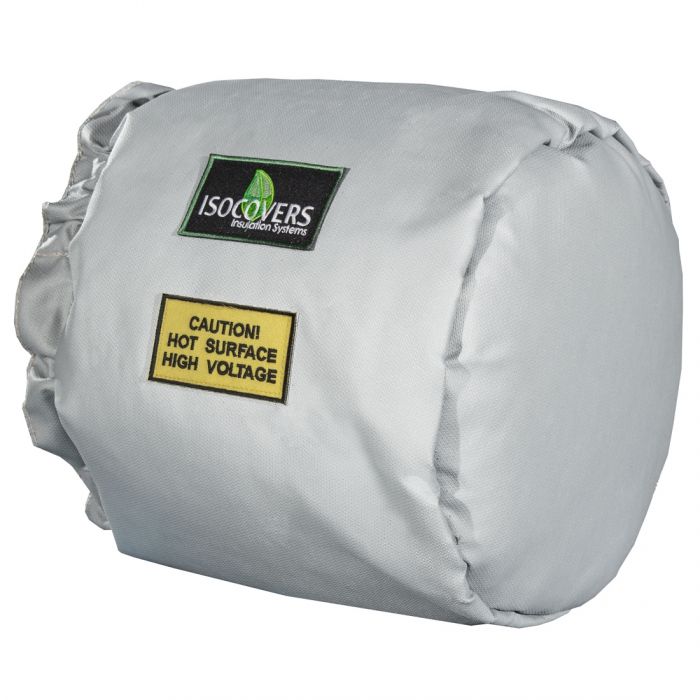

ISOCOVERS ISO-HUB Insulation Jackets are suitable for end fittings in piping systems, including steam traps, end caps, blind flanges, or the like.

ITEM

Valve Insulation

FASTENING SYSTEM

Hook, SS Wire

LENGTH

18in / 457mm

APPROX "R" FACTOR

. 48

WIDTH

06in / 152mm

MAX TEMP /
CONTINUOUS USE

900F / 482C
800F / 426C

THICKNESS

3in / 76mm

COLOR

Grey

INSULATION MATERIAL

Mineral Wool, Fiberglass

WEIGHT

5.90lbs / 2.68kg

JACKET MATERIAL

Silicone Coated Fiberglass Cloth

FIT

Universal
DIAMETER RANGE 16in-18in / 406mm-457mm CIRCUMFERENCE RANGE 50in-57in / 1270mm-1448mm

Features & Benefits:

  • ISOCOVERS Insulation Systems create a SAFER WORKING ENVIRONMENT for your employees and increase equipment lifespan by protecting key components from high temperatures.
  • ISOCOVERS Insulation Systems are made with STANDARD, READILY AVAILABLE, OFF-THE-SHELF COMPONENTS that can be easily configured for almost any application requirement.
  • ISOCOVERS Insulation Systems are COMPLIANT WITH OSHA SAFE-TOUCH STANDARDS for exposed heated surfaces (if there is a potential for injury).
  • ISOCOVERS Insulation Systems deliver an INCREASED CONTROL OF PROCESS TEMPERATURES to enhance production capacity by reducing the amount of energy needed to keep equipment running at high temperatures.

APPLICATIONS:

  • End caps, butt weld fittings
  • Caps, socket weld
  • End caps, NPT-threaded
  • Screwed ends, threaded
  • Float & thermostatic steam traps
  • Blind flanges
