L Shape Single Bayonet 3000 watt - 22" Horizontal - 25" Vertical

More Views

L Shape Single Bayonet 3000 watt - 22" Horizontal - 25" Vertical
$417.60

Availability: Ships in 2-3 weeks

Part Number: PRT-L1B-22-25

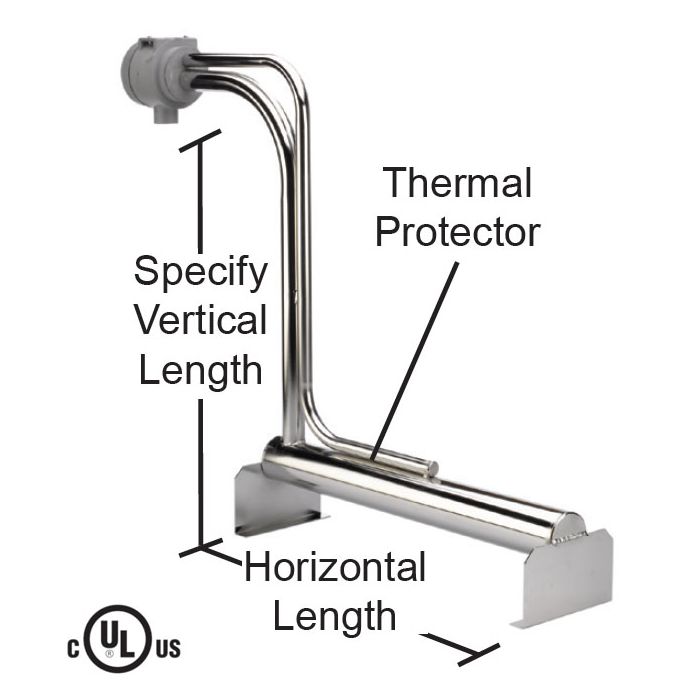

3000 watt, L-shaped, single bayonet, over the side heater.
Steel, 304 or 316 stainless steel or titanium.
22" horizontal hot zone and 25" vertical length.
Thermal protection options.
36" wire with conduit.
240 or 480 volt.
1 or 3 phase

* Required Fields

$417.60
Description

Details

FEATURES
  • Heavy wall metal sheaths available in steel, 304 stainless steel, 316 stainless steel and titanium.
  • Watt densities up to 35 watts/square inch (5.4 w/cm²).
  • Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
  • Grounded construction and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).
  • Certification: cULus (except steel and 600 volts)
SPECIFICATIONS
  • 3000 watts
  • 240 or 480 volts
OPTIONS AVAILABLE (CONSULT FACTORY)
  • Resettable thermal protectors require additional control components
  • Lower watt densities for highly viscous solutions.
  • Custom configurations and lengths
  • Custom wire and conduit lengths
