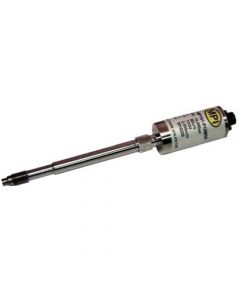

Transducers - Rigid Stem

The diaphragm transmits pressure through the fluid filled capillary for high temperature stability. Four active arm wheatstone bridge strain gage ensures high accuracy. The rigid stem makes installation fast and easy.

Features:

  • Fluid filled system
  • Standard 3.33mV/V
  • 6pin Bayonet Connector
  • 6, 9 and 12” Stems
  • 0.5% combined error
  • 80% Output Calibration
  • Interchangeable with all Competitor’s models
  • 750°F (400°C) Rating
  • Ranges from 1000 to 20,000 psi
  • Standard Inconel Diaphragm

Options:

  • Output option - 2.5mV/V
  • Connector option - 8 pin - 6 pin screw
  • 12" stem
  • 30" Flex hose (MP200)
  • Optional diaphragms - Hastelloy, Titanium Nitride, Inconel Tip & Diamond Particulate
  • Thread Options

Call 615-834-4044 to order transducers with options not listed below.
