Call us at 615-834-4044 for custom configurations, technical details or to obtain a quote.

Download our mineral insulated band heater datasheet

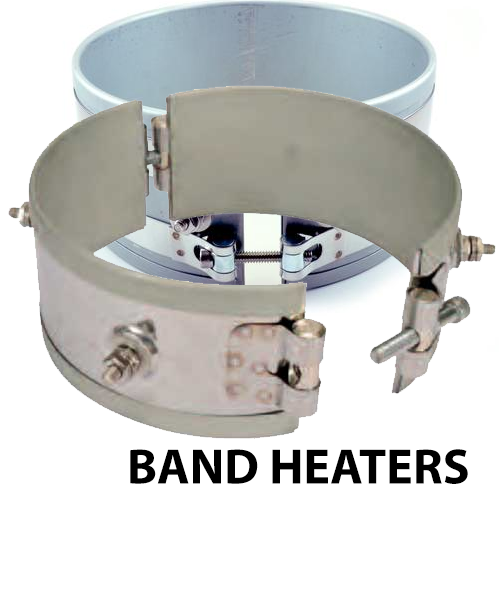

Protherm Mineral Insulated Band Heaters are perfect for applications needing reliable high process temperatures. The Protherm Mineral Insulated Band Heater, with Alumina Oxide insulation and welded stainless steel sheath, has a high watt density of 80W/in2 Max. It is built with very high quality materials and based on application can maintain temperatures as high as 1400ºF (760ºC).

Mineral insulated band heater cut away


  • Maximum High Watt density 80W/in2
  • Longest band heater life available
  • Ceramic insulation
  • Stainless steel band
  • Rugged lead protection
  • Custom designed to specifications provided
  • Low minimum order requirements
  • Expedited order options are available


Operating Temp Capability 1400° F
Holes: Yes
Cutouts: Yes
Custom Delivery: 20-25 Days
Durability: Excellent


Protherm Mineral Insulated Band Heaters are ideal for applications that need to maintain consistent higher temperatures throughout the manufacturing process.

  • Plastics
  • Manufacturing
  • Industrial Facilities

In addition, Mica Bands can be modified to meet the demands of virtually any special application. Our engineers can utilize a variety of alternative features and options to customize the heater to your specific needs.
