SMO5HP-2 High Performance Oven, 4.9 Cu.Ft.

$6,053.00
Ships in 2-3 weeks
SKU
SMO5HP-2

The SMO5HP-2 has rugged, welded construction with a double-walled, corrosion-resistant stainless steel interior and a powder-coated exterior.

Price Includes Freight & Pallet.
Can take 4-6 weeks for delivery.

The SMO5HP-2 has rugged, welded construction with a double-walled, corrosion-resistant stainless steel interior and a powder-coated exterior.

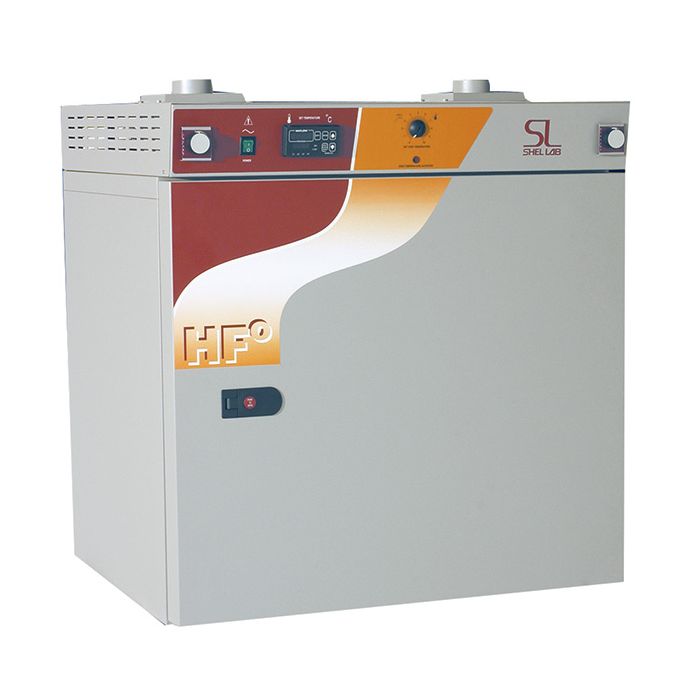

Note: Replaces model HF4-2

  • Horizontal Air Flow
  • Encapsulated Insulation
  • Unique Intake and Exhaust Control
  • Space Saving Design
  • 24-Step Ramp and Soak PID Controller
  • Stainless Steel Interior
  • Built-in Overtemperature Protection
  • 24 Month Limited Warranty
MODEL SMO5HP-2
Shelving 2 Supplied (8 Maximum)
Heat-up (min) 10 minutes to 110°C (20 min to 180°C)
Temperature Control 0.1°C
Temperature Recovery Time 4 minutes to reach 110°C
Electrical Specifications Volts: 220V Hertz: 50/60 Hz Watts: 2200 Amps: 12
Temperature Uniformity +/-1.0°C at 110°C
Temperature Range 15°C above ambient to 260°C
Exterior Dimensions WxDxH in. (cm) 35 x 30.5 x 37.5 (88.9 x 77.5 x 95.3)
Interior Dimensions WxDxH in. (cm) 20.5 x 20.7 x 20 (52 x 52.7 x 50.8)
Capacity 4.9 cu.ft. (139 L)
Factory Installed Reversible Door Optional

All specifications are determined by using average values on standard equipment at an ambient temperature of 25°C (77°F) and line voltages within +/-10% of unit type (115V/230V). Temperature specifications follow DIN 12880 methodology. We reserve the right to change specifications at any time.
