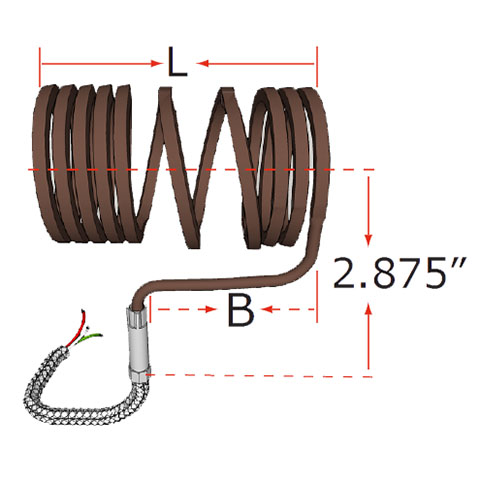

Compare this coil heater to part number SCH1061. The coil heater inner diameter is 0.750″, and the coil heater length is 2.09″. The electric coil heater leads are 36″ long with stainless steel overbraid. The coil heater is made for 240 volts and 300 watts. Has an ungrounded type j thermocouple. This Viper coil heater has a .13″ by .13″ square cross section. This coil heater has a CL5 orientation like the coil heater in the picture. 3″ unheated length at lead. 1.25″ B length.
Custom Item - Ships in 1-2 Days - No Returns
0.750″ ID x 2.09″ Coil Heater 300w 240v SCH1061
$544.05
- Internal Diameter: 0.750″
- Coil Length: 2.09″
- Watts: 300
- Volts: 240
- Leads: 36″
- Braid: Stainless steel
- Lead Orientation: CL5
- Unheated Length: 3″ at lead
- “B” Length: 1.25″
- Thermocouple: Ungrounded Type J
