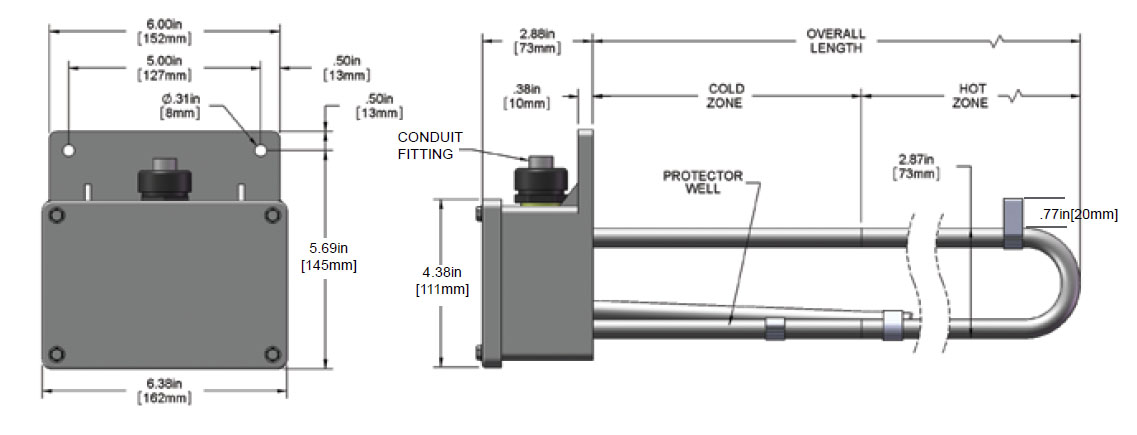

6 Element Tubular Over The Side Heater
- 6 heavy wall 316 stainless steel sheaths.
- Watt densities up to 40 watts/square inch (6.2 w/cm²).
- Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
- Grounded construction and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).
- Certification: cULus (except steel and 600 volts)
SPECIFICATIONS
- 15,000 watts
- 240 or 480 volts
OPTIONS AVAILABLE (CONSULT FACTORY)
- Resettable thermal protectors require additional control components
- Custom configurations and lengths
- Custom wire and conduit lengths
