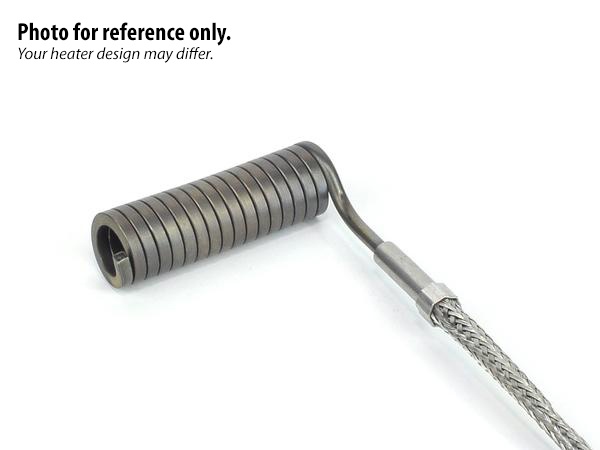

Compare this coil heater to part number SCH0082. The coil heater inner diameter is 5/8″, and the coil heater length is 2.5″. The electric coil heater leads are 36″ long with stainless steel overbraid. The coil heater is made for 240 volts and 350 watts. This Viper coil heater has a .13″ by .13″ square cross section. This coil heater has a CL1 orientation like the coil heater in the picture. 1/2″ extension at lead and internal thermocouple.
Custom Item - Ships in 1-2 Days - No Returns
0.620″ ID x 2.5″ Coil Heater 350w 240v SCH0082
$571.26
- Internal Diameter: .620″
- Coil Length: 2.5″
- Watts: 350
- Volts: 240
- Leads: 36″
- Braid: Stainless steel

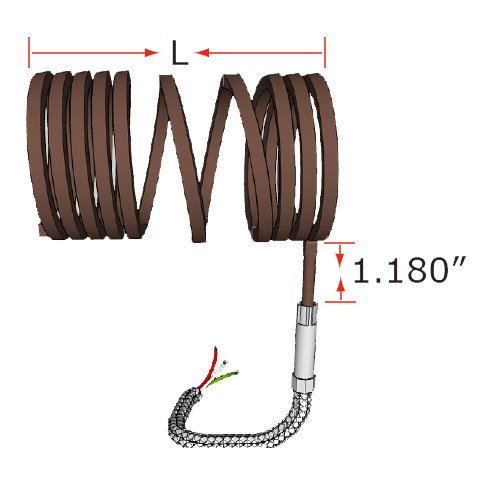

- Lead Orientation: CL1
- Thermocouple: Internal
