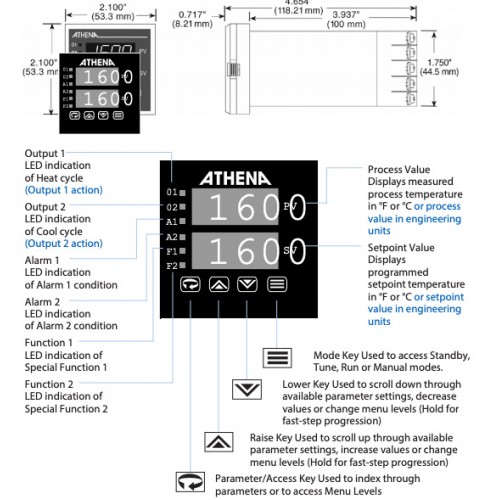

The Athena 16C is a 1/16 DIN panel mounted, auto tuning controller that can be used for precise control of a single loop with two independent outputs field configurable as direct acting, reverse acting or alarm. RS-232 or RS-485 communications interfaces are available, and two digital LED displays provide visual indication of various control functions.
Universal Temperature Controller Features:
- Field-Configurable Universal Inputs
- User-Selectable Ramp to Setpoint
- 8-Level Ramp/Soak Control
- Bumpless Auto/Manual Transfer
- NEMA 4X (IP65) Dust and Splash-Proof Front Panel
- Decimal Display in 0.1° for Measured Temperatures Under
1000° F or °C - On/Off Through Full PID Operation (P, PI, PD, PID)
- Adjustable Hysteresis and Deadband
- Outputs Configurable as Alarms
- Field-Configurable Process or Deviation Alarms; Latching or
Non-Latching; Band and Inverse Band - Dual Output/Dual Alarm Capabilities
- UL, cUL, and CE Approvals
- Options Include Multi-Function Contact/Digital Input, Transducer
- Excitation, and Auxiliary Output
- Special and Custom Options Available
- DIN Rail Option
