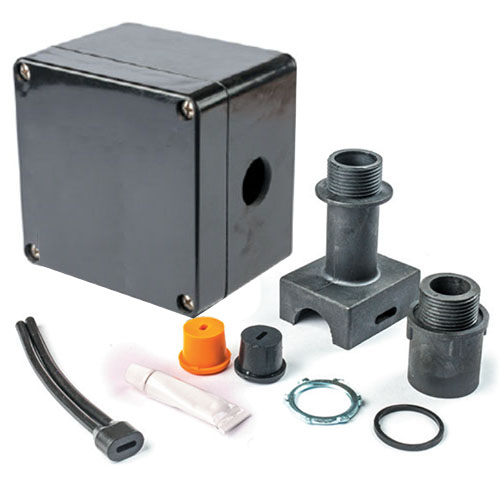

NEMA 4X rated junction box designed to connect constant wattage heating cables to customer supplied power wiring. This kit provides water-resistant cable entry for one cable, enclosure support, terminal block, and a water-resistant corrosion-resistant wiring enclosure with a 3/4” opening to accept a conduit hub. A pipe strap is required to attach this model to a pipe. Small pipe adapter is available for pipe size less than 1-1/2”.
Kit Dimensions: 9.78”H x 4.78”W x 3.6”D
Kit Includes:
- 1 Junction box with DIN rail & terminal block
- 1 Compression fitting
- 1 Locknut
- 1 Silicone termination boot
- 1 Pipe standoff
- 1 O-ring
- 1 Self-regulating cable grommet
- 1 Constant wattage cable grommet
