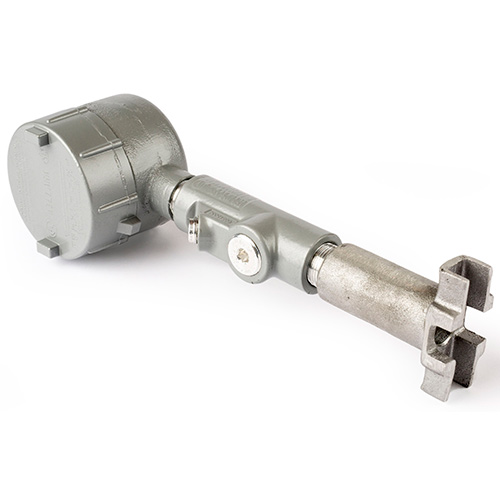

The Model HL-PC Hazardous Location Power Connection Kit is a Division 1 certified junction box and seal fitting. The pipe stand-off and seal fitting combination provides a water resistant and explosion proof seal. The junction box has a 3/4″ opening with top or side entry for the power connection. Pipe straps (not included) are used to provide a means to attach this model to the pipe.
Power Connection Kit for Hazardous Locations HL-PC 382192

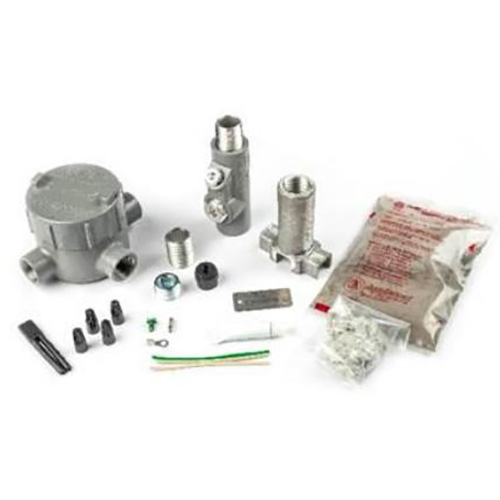

- (1) 3/4″ junction box
- (1) Seal fitting
- (1) Ring terminal
- (1) Tube of RTV
- (2) Termination seal
- (1) Pipe stand-off
- (1) Sealing grommet
- (1) Conduit plug
- (1) Sealing compound
- (1) Butt splice
- (3) 12 AWG leads
- (4) Wire nuts
