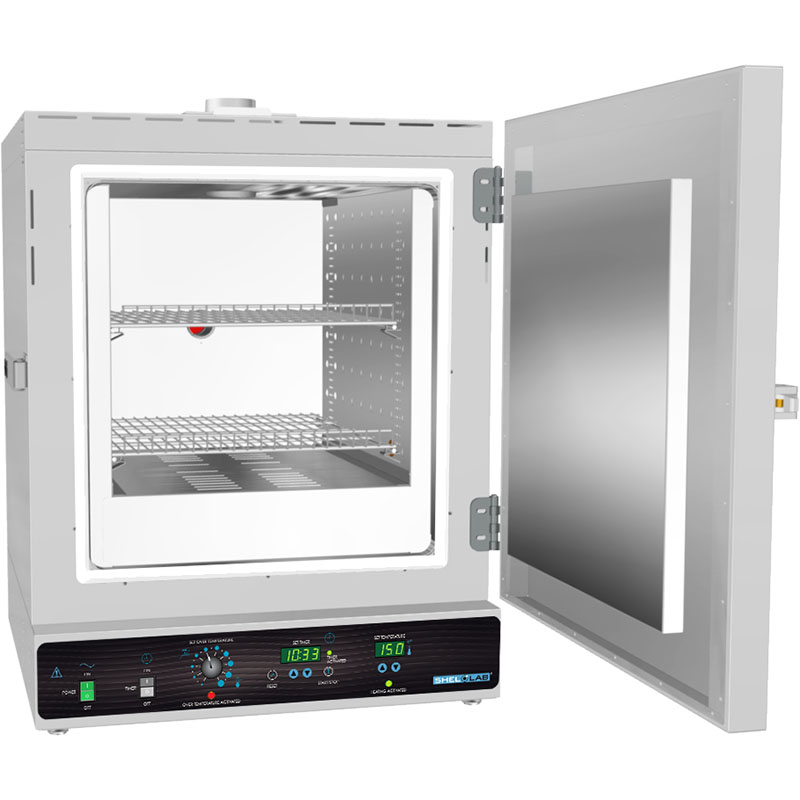

This unit has triple wall construction and easy to read microprocessor controls. Adjust the air exhaust from the chamber without putting your fingers near the heat source. Even at temperatures of 306°C, the outer skin of this unit meets all CE requirements, meaning your application will stay hot but your work-space will not. This gravity convection oven provides a degree of uniformity comparable to most forced air ovens on the market. The 99 min 59 hr digital timer has an independent control so its use is optional. Once the timer expires the power is cut to only the heating elements.
These units include:
- Microprocessor Controls
- Superb Temperature_Control
- Cool Touch Damper
- Digital Timer to 99hr and 59 min
- CE Approved
MODEL: SGO3
PART ID: SLG322
EXTERIOR DIMENSIONS (W × D × H)
26.9 × 28.6 × 34
(684 mm × 727 mm × 840 mm)
INTERIOR DIMENSIONS (W × D × H)
16.5 × 19.5 × 16.2
(419.0 mm × 495.0 mm × 412.0 mm)
VOLUME
3.0 cu.ft. (85.0 L)

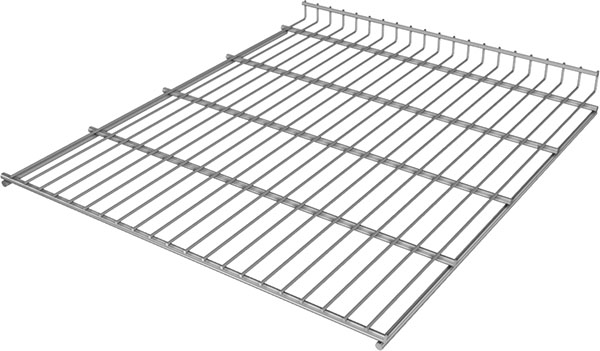

SHELF DIMENSIONS (W × D)
16.1 × 18.8 (409 mm × 478 mm)
UNIT WEIGHT
170.5 lbs (77.3 kg)
INTERIOR METAL
430 SST
EXTERIOR METAL
Painted Cold Roll Steel
TEMPERATURE UNIFORMITY – MIDRANGE
3.5 °C
TEMPERATURE STABILITY – MIDRANGE
0.3 °C
CONTROLLER TYPE
Digital
DISPLAY RESOLUTION
0.1 °C
POWER VOLTAGE , FREQUENCY AND CURRENT
110-120 VAC, 50/60 Hz, 12.0 Amps
MAX HVAC LOAD
5732 BTUs/hr
SAFETY CERTIFICATIONS
UL 61010-1, EN 61010-1, CSA 61010-1, CE
