Washdown heaters are used in Wastewater Treatment Plants, Coal Handling Areas, Food Processing Plants, Greenhouses, Foundries, Steel Mills, Cement Plants, Car Washes and Ship/Marine Docks.
Washdown heaters are available with varying heater-rated voltages, and meet a wide range of commercial heating applications.
| Model Number | Heater Watts | Volts | Heater Phase | Total Amps | BTU/HR | Temp Rise | Motor Phase | Control Voltage | CFM | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| BWD10212 | 10kw | 240 | 1 | 42.4 | 34,120 | 22 | 1 | 24 | 1450 | 60 |
| BWD10712 | 10 | 277 | 1 | 36.8 | 34,120 | 22 | 1 | 24 | 1450 | 60 |
| BWD10412 | 10 | 480 | 1 | 21.2 | 34,120 | 22 | 1 | 24 | 1450 | 60 |
| BWD10832 | 10 | 208 | 3 | 28.7 | 34,120 | 22 | 1 | 24 | 1450 | 60 |
| BWD10232 | 10 | 240 | 3 | 24.8 | 34,120 | 22 | 1 | 24 | 1450 | 60 |
| BWD10432 | 10 | 480 | 3 | 12.4 | 34,120 | 22 | 1 | 24 | 1450 | 60 |

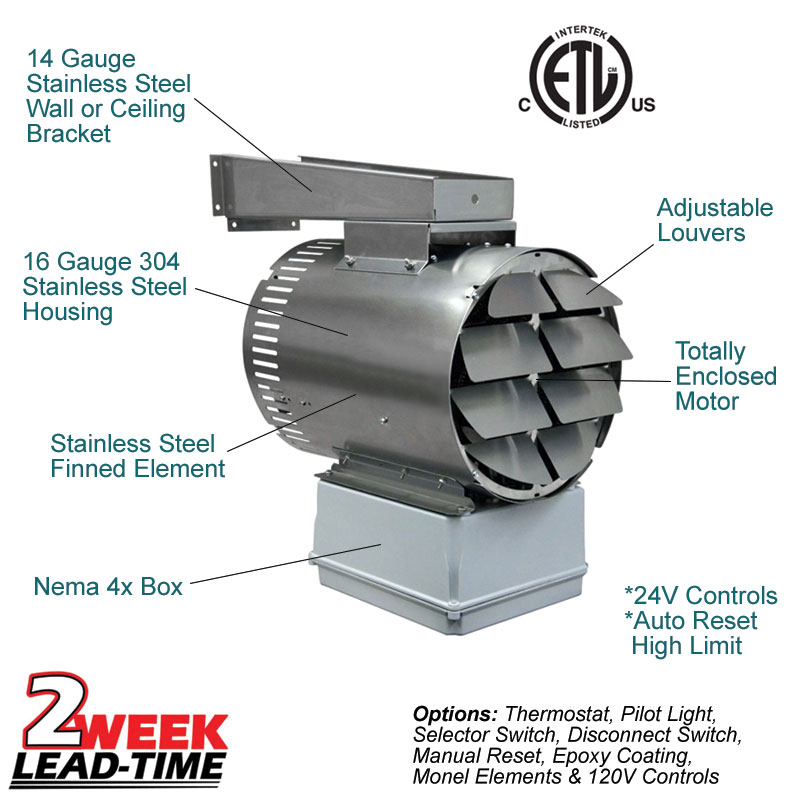

- Washdown heaters offer corrosion protection in harsh environments with ability to be hosed down for cleaning
- Completely enclosed ball bearing motor that is epoxy-coated for moisture and corrosion resistance
- NEMA 4X junction box protects against water and dust
- 16-gauge 304 Stainless Steel cabinet for longer life and rust-resistance
- 24V controls improves safety with remote thermostat
- 316 Stainless Steel-finned elements for improved heat distribution
- 14-gauge Stainless Steel wall/ceiling bracket provides multiple options for mounting
- Automatic temperature high reset limit activates if the temperature gets too high
