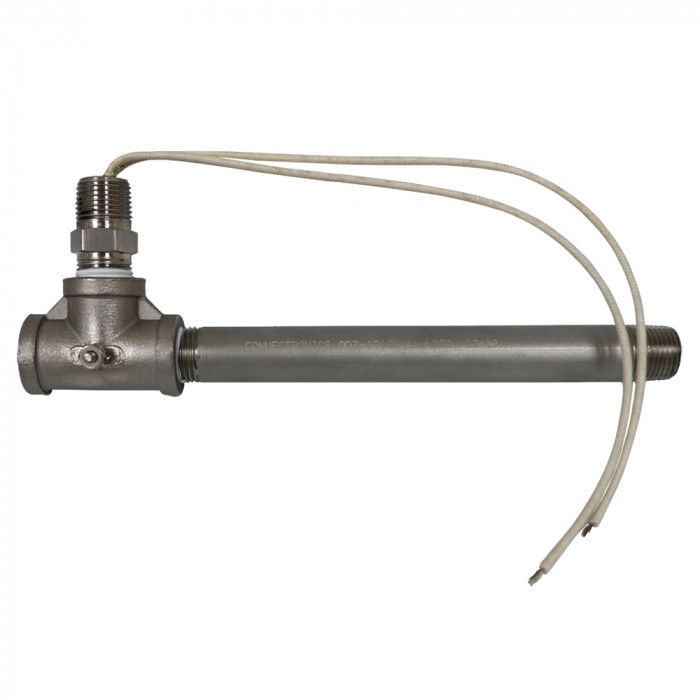

4000W 220V 1/2" NPT In-Line Pipe Air Heater w/ Flex Lead Termination

$653.00
Ships in 1-2 days
SKU
PRT007-10136

The Style 007 Fluid Heater uses the same element configuration as the Styles 001 and 003 but in a stainless steel pipe. This construction is suited to in-line applications where pipe threads are required at both inlet and outlet ends. Electrical terminations are offered in the form of lead wires and as feedthrus rated up to 150 psi. These heaters can be used to heat substances other than air as long as the fluid is non-conductive and does not chemically react with 300 series stainless steel, silver solder, nickel, aluminum oxide or the epoxy potting material used on the leaded model. This product must be properly grounded and fused.

Part # PRT007-10136
Country of Manufacture United States
Overall Height 3 1/8''
Termination Thread 1/2''
Lead Wires 12''
Female Pipe Thread 3/8''
Pipe Length 9 5/16''
Pipe Thread 1 1/4''
Tee Length 2 1/4''
