Industrial & Process Heating Elements

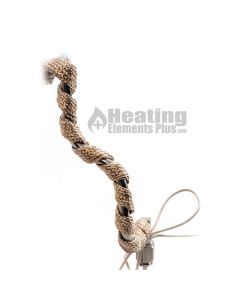

Dual Element Heating Tapes

Features

  • Dual heater element design increases flexibility
  • Ideal for wrapping around and heating a wide range of laboratory glassware and apparatus: graduated cylinders, flasks, beakers, distillers and tubing.
  • Connects easily to your choice of temperature control: 120VAC models include standard 2-prong plug
  • Includes high-temperature tie-downs for easy installation Wide range of sizes

Specifications

  • Highly flexible and durable multi-stranded dual heating element provides even heat across the tape
  • Reinforced with high temperature Samox® fiberglass for added strength and durability
  • High temperatures and rapid thermal response. Maximum exposure temperature: 1400oF (760oC)
  • Double braided outer sheath cover
  • Power density: 13.1 watts/in2 (0.020 watts/mm2)
  • Suitable for electrical conductive surfaces
  • 24" (610mm) power leads with:
    • 120VAC: Standard 2-prong power plug (NEMA 1-15)
    • 240VAC: Bare wire connection
  • Includes 9" (230mm) long high temperature tie downs for easy installation

Temperature controller required
