Industrial & Process Heating Elements

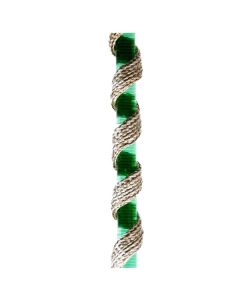

High Temperature Heavy Insulated Heating Tape

Features

  • High temperatures and rapid thermal response.
  • Maximum exposure temperatures up to 1400oF (760oC)
  • Perfect for a wide range of applications including heating laboratory apparatus, gas tubing, temporary heat, and valves.
  • Exceptional flexibility and durability
  • Suitable for electrically conductive surfaces
  • Choice of power leads on same end or opposite ends
  • Wide range of sizes Includes 9" (230mm) long high temperature tie downs for easy installation.

Specifications

  • High temperature Samox® knitted and braided construction
  • Multi-stranded resistance wire for increased durability and flexibility
  • Double braided outer sheath cover
  • Power density:
    • Widths up to 1" (25mm): 13.1 watts/in2 (0.020 watts/mm2)
    • 1.75" (44mm) width or greater: 7.7 watts/in2 (0.012 watts/mm2)
  • Suitable for electrical conductive surfaces
  • 24" (610mm) power leads with:
    • 120VAC: Separable standard 2-prong power plug (NEMA 1-15)
    • 240VAC: Bare wire connection

Temperature controller required
