Industrial & Process Heating Elements

Standard Insulated Heat Tape

Features

  • High temperatures and rapid thermal response.
  • Maximum exposure temperatures up to 900oF (482oC)

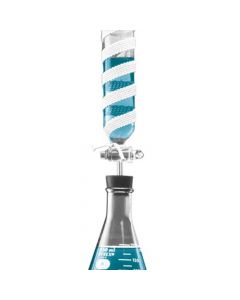

  • Perfect for a wide range of applications including heating laboratory apparatus, glass, and temporary heat.
  • Exceptional flexibility and durability
  • Wide range of sizes
  • Suitable for non-conductive electrical surfaces only (i.e. glass)
  • Choice of power leads on same end or opposite ends
  • Includes 9" (230mm) long high temperature tie downs for easy installation

Specifications

  • Fiberglass knitted and braided construction
  • Multi-stranded resistance wire for increased durability and flexibility
  • Power density: 8.6 watts/in2 (0.013 watts/mm2)
  • Suitable for non-conductive electrical surfaces only
  • 24" (610mm) power leads with:
    • 120VAC: Separable standard 2-prong power plug (NEMA 1-15)
    • 240VAC: Bare wire connection

Temperature controller required
