15 w/ft 120v Mid-Temp Self Reg Heat Cable Fluropolymer Jacket

15 watts/ft 120 volt mid temperature, self regulating heat trace cable with fluropolymer jacket.

100 Foot Minimum Order
Please call 615-834-4044 for orders under 100 feet,
as there is an additional cutting fee.

Suggested items for your installation:

Connection Kits
Accessories
High Temp Tape
Line Sensing Thermostat
Ambient Sensing Thermostat
Control Panels

---



Ideal for pipe tracing, freeze protection, and low temperature process maintenance applications up to 250°F (120°C).
Self-limiting: Automatically adjusts heat output based on surface temperature.
Safe to overlap and insulate.
Can be cut-to-length and terminated in the field.
No temperature controller is required. (If a specific process temperature is needed, a temperature controller is required.)

Specifications:

• Continuous maintenance temperature: 250°F (120°C) maximum
• Intermittent exposure temperature: 366°F (185°C) maximum; -40°F (-40°C) minumum
• 5, 10, or 15 watts/ft (16, 33, 49 watts/m)
• Supply voltages: 110 - 120VAC or 208 - 277VAC
• Moisture, chemical, and flame resistant
• 16AWG bus wires
• Tinned copper braid resistance: 0.003 ohms/ft (0.010 ohms/m)
• T-Rating: T3**

** Electrical equipment T-rating codes define the maximum surface temperature that equipment will reach. It is used in hazardous (classified) area applications.

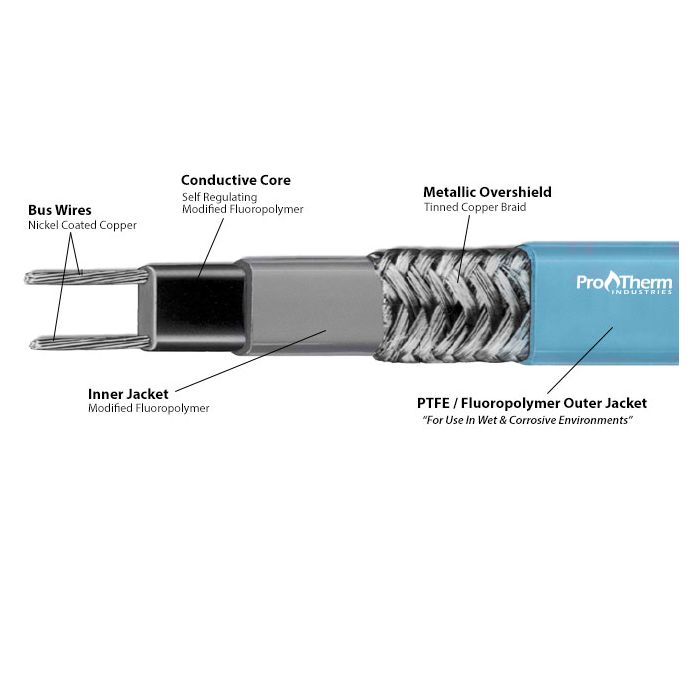

Outer Layer Options

Description	Dimensions	Purpose
Tinned Copper Metal Braid	0.2" x 0.6" (6mm x 15mm)	Ordinary applications
Tinned Copper Metal Braid with Fluoropolymer Overjacket	0.2" x 0.6" (6mm x 15mm)	For use in strong chemical environments (i.e. strong acids)

Maximum Circuit Length in Feet per Circuit Breaker Size

Heat Cable Type	Circuit Breaker Size	Start-up Temperature
		50°F  (10°C)	0°F  (-20°C)	-40°F  (-40°C)
5 watt 120 volt	15 amp 20 amp 30 amp	150 200 240	135 180 220	130 170 210
5 watt 240 volt	15 amp 20 amp 30 amp	250 330 480	230 305 440	220 295 420
10 watt 120 volt	15 amp 20 amp 30 amp	90 120 180	85 110 165	80 105 160
10 watt 240 volt	15 amp 20 amp 30 amp	140 190 280	130 175 260	125 170 250
15 watt 120 volt	15 amp 20 amp 30 amp	70 90 130	65 85 125	60 80 120
15 watt 240 volt	15 amp 20 amp 30 amp	100 135 200	95 125 185	90 120 180

Note: Special consideration must be given for the circuit breaker due to the high initial in-rush currents.

Voltage Adjustment

Power Adjustment Factor
Product Type	208 VAC	277 VAC
5 watt 240 volt	0.78	1.25
10 watt 240 volt	0.86	1.16
15 watt 240 volt	0.92	1.09

SLMCAB15120BF
