Table Top 2 Zone Hot Runner & Lab Controller

$820.00
In stock
SKU
RMB2

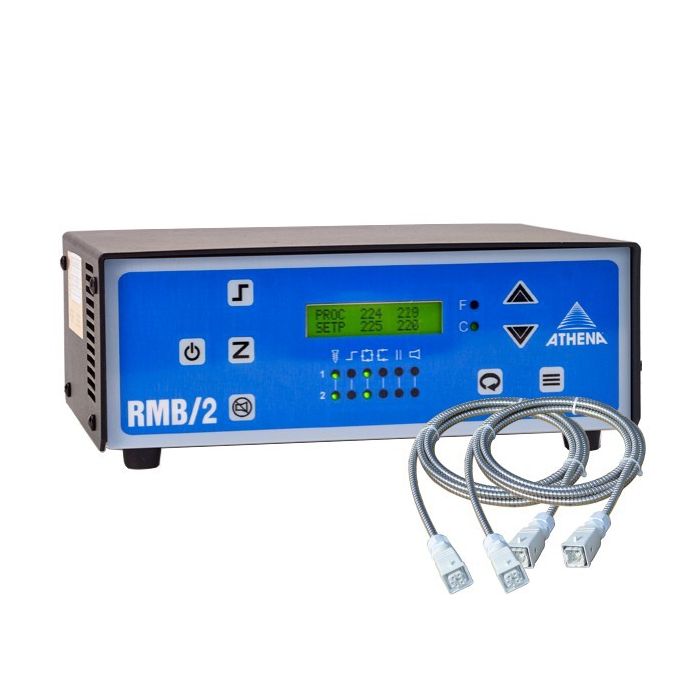

Athena’s Series RMB2 Modular Hot Runner control is a microprocessor-based, 2-zone temperature control designed for runnerless molding applications. It is fully self-tuning, with built-in diagnostics, and features an easy-to-use operator keypad with simultaneous process and set point displays and discrete indicators for heat output, alarm, degrees F/C, manual/closed loop mode, and CompuStep®.

Athena’s Series RMB2 Modular Hot Runner control is a microprocessor-based, 2-zone temperature control designed for runnerless molding applications. It is fully self-tuning, with built-in diagnostics, and features an easy-to-use operator keypad with simultaneous process and set point displays and discrete indicators for heat output, alarm, degrees F/C, manual/closed loop mode, and CompuStep®.

  • CompuStep® bake out feature removes moisture from the heater before full power is applied
  • CompuCycle® feature improves response time, reduces thermal fatigue and prolongs heater life by applying AC power smoothly and continuously
  • SafeChange™ “hot swap” feature allows safe removal and replacement of modules
  • Compatible with all D-M-E Company’s G Series and Smart Series, ITC, MCS, Yudo, and Incoe brand mainframes
  • Accepts Type “J” or “K” thermocouple input (dip switch selectable)
  • Current monitoring feature displays average output current to load
  • Bumpless auto/manual transfer (dip switch selectable)
  • Built-in loop break, open, and reverse thermocouple protection
  • Adjustable alarms at 30°F (17°C)
  • Built-in triac safety protection
  • Ground fault protection
  • Auto-tuning with adjustable proportional band and rate
  • CE Compliant
