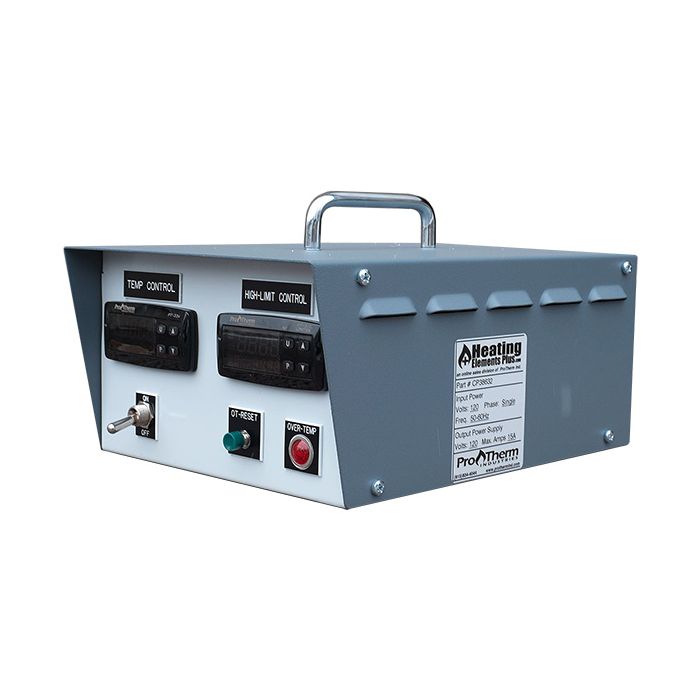

Single Phase Portable SCR Power Control Panel

$825.00
In stock
SKU
CP38633

Dual digital displays provide setpoint and process readings. The control package provides 3 mode (PID) with a 15 Amp output capability. Output firing modes include Phase Fire for inductive or transformer loads, Time Proportional or DOT fire (zero crossover) for resistive loads. The optional over-temperature controller is used in applications where excess temperature detection and shutdown are required for process and personnel safety.

Single Phase Portable SCR Power Control Panel

Dual digital displays provide setpoint and process readings. The control package provides 3 mode (PID) with a 15 Amp output capability. Output firing modes include Phase Fire for inductive or transformer loads, Time Proportional or DOT fire (zero crossover) for resistive loads. The optional over-temperature controller is used in applications where excess temperature detection and shutdown are required for process and personnel safety.

Features:

  • Current: 15 Amps @ 40°C (104°F) Ambient
  • Fully wired, convenient plug-in recepticles for input and output connections
  • Controls heater loads
  • Fused output
  • Up to 15 Amps at 120/240 Vac
  • Plug-in controller and optional alarm
  • Universal sensor input
  • Power on/off switch
  • Circuit Breaker
  • Digital indication of process and setpoint
  • 120/240 Vac multi-line voltage
  • 6 foot power cord included
  • Portable metal case

Options Include:

  • Phase Angle or Zero-Cross-over Firing
  • Type J or K Thermoucouple Input Jacks
  • Overtemp Controller
  • 120 or 240 volt

Power Handling Capability:

  • 3600 Watts at 240 volt
  • 1800 Watts at 120 volt
