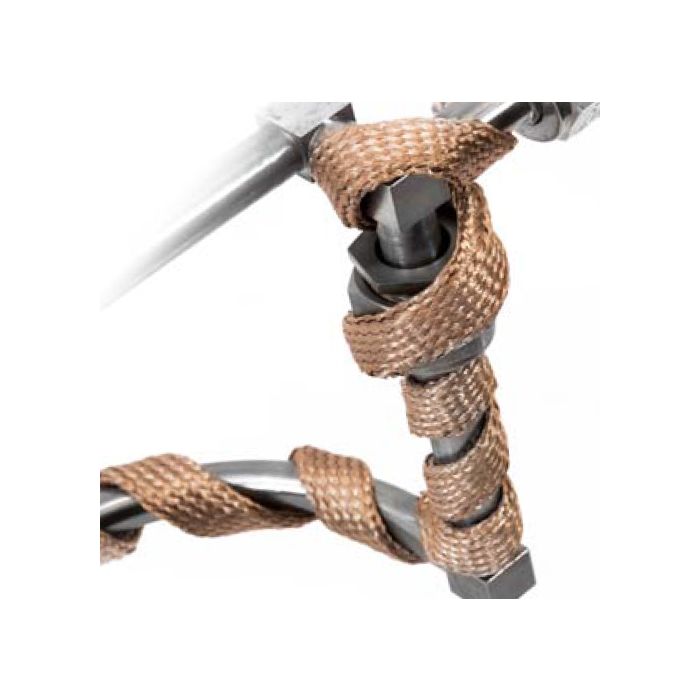

Heavy Insulated Heating Tape 0.5" x 120" 520 Watt BIH051100L

0.5" x 120"
Heavy Insulated Heating Tape
520 Watts
Available in 120 or 240 volt
Lead Opposite End Option Available

• High-temperature fiberglass heating tape with maximum exposure temperatures up to 900°F (482°C).
• This product requires a temperature controller for safe operation!
• Multi-stranded resistance wire heating element provides exceptional flexibility and durability.
• Fiberglass outer sheath provides electrical insulation for safe use with electrically conductive surfaces.
• Rapid thermal response provides accurate heat when you need it.
• Available in a wide variety of length and width configurations.
• Ideal for laboratory heating applications for apparatus, gas tubing, temporary heat, valves, and more.
• Safe for use with glass and electrically conductive metal surfaces.
• Includes 9" (230mm) long high temperature tie downs for safe and easy installation.
• Temperature controller is required for safe operation of this product.
• Built-in split-plug design easily connects to your choice of temperature controlling device.

• Maximum exposure temperature: 900°F (482°C)
• Construction:
  • Fiberglass knit and braided heating element
  • Fiberglass knit and braided outer sheath
• Power density:
  • Standard: 8.6 W/in2 (0.013 W/mm2 )
  • Wide† : 5.1 watts/in2 (0.008 watts/mm2)
• 24" (610mm) power leads with:
  • 120VAC: Separable standard 2-prong power plug (NEMA 1-15)
  • 240VAC: Bare wire connection

† 1.75” (44mm) wide tape or greater only.
