Heavy Insulated Heating Tape 1.75" x 120" 1045 Watt BIH171100L

$384.78
CALL FOR AVAILABILITYCALL FOR AVAILABILITY
SKU
BIH171100L

1.75" x 120"
Heavy Insulated Heating Tape
1045 Watts
Available in 120 or 240 volt
Lead Opposite End Option Available

1.75" x 120"
Heavy Insulated Heating Tape
1045 Watts
Available in 120 or 240 volt
Lead Opposite End Option Available

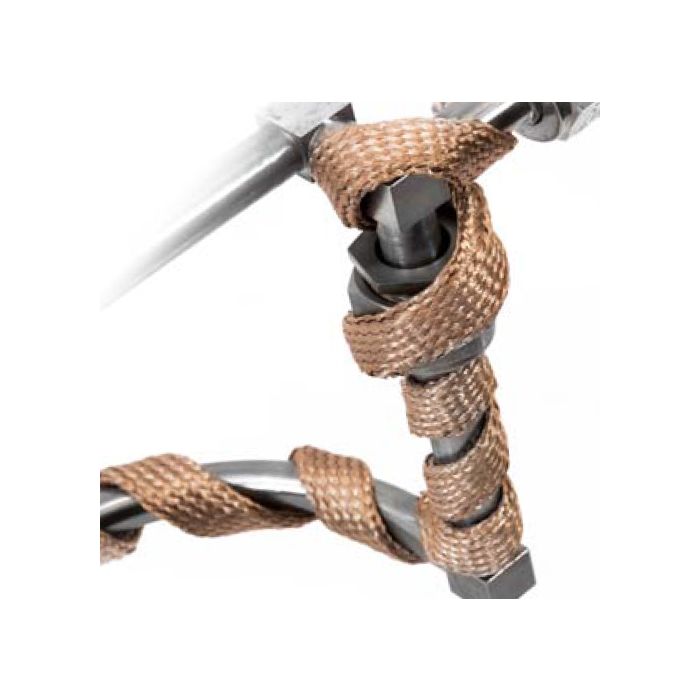

  • High-temperature fiberglass heating tape with maximum exposure temperatures up to 900°F (482°C).
  • This product requires a temperature controller for safe operation!
  • Multi-stranded resistance wire heating element provides exceptional flexibility and durability.
  • Fiberglass outer sheath provides electrical insulation for safe use with electrically conductive surfaces.
  • Rapid thermal response provides accurate heat when you need it.
  • Available in a wide variety of length and width configurations.
  • Ideal for laboratory heating applications for apparatus, gas tubing, temporary heat, valves, and more.
  • Safe for use with glass and electrically conductive metal surfaces.
  • Includes 9" (230mm) long high temperature tie downs for safe and easy installation.
  • Temperature controller is required for safe operation of this product.
  • Built-in split-plug design easily connects to your choice of temperature controlling device.
  • Maximum exposure temperature: 900°F (482°C)
  • Construction:
    • Fiberglass knit and braided heating element
    • Fiberglass knit and braided outer sheath
  • Power density:
    • Standard: 8.6 W/in2 (0.013 W/mm2 )
    • Wide† : 5.1 watts/in2 (0.008 watts/mm2)
  • 24" (610mm) power leads with:
    • 120VAC: Separable standard 2-prong power plug (NEMA 1-15)
    • 240VAC: Bare wire connection

† 1.75” (44mm) wide tape or greater only.
