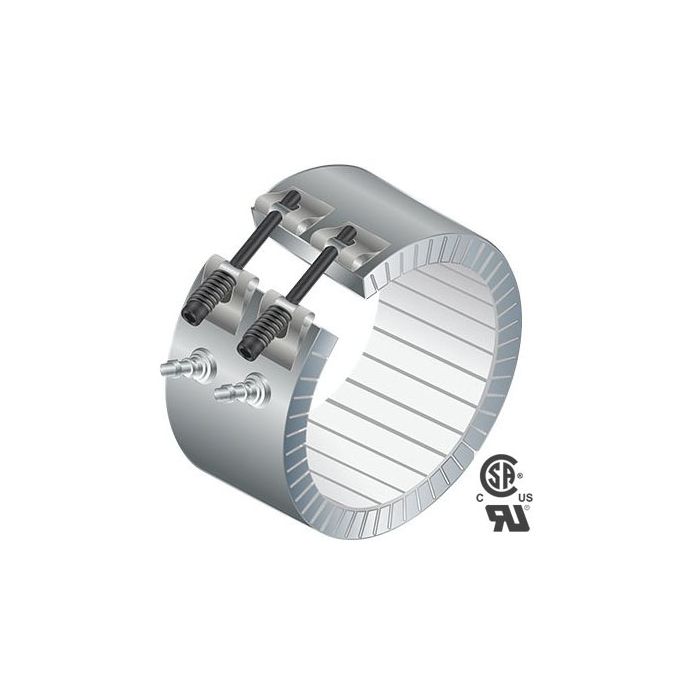

5"D x 4"W Ceramic Band Heater 240V 2200W

$300.55
Ships in 1-2 weeks
SKU
PRT-BCH00053

5"D x 4"W Ceramic Band Heater 240V 2200W

5"D x 4"W Ceramic Band Heater 240V 2200W

Call us at 615-834-4044 for custom configurations, technical details or to obtain a quote.

A helically wound resistance coil made from nickel-chrome wire is precisely strung through specially designed ceramic insulating bricks, forming a flexible heating mat. Our style of Ceramic Insulating Bricks offers several benefits including:

  • Excellent dielectric strength at high temperatures with high voltages
  • Ability to interlock and provide a more rigid structure
  • Allows for heater widths in smaller increments (1/8")
  • Reduces the chances of damaging internal coils in transit and handling
  • Allows for easier installation of the heater onto the pipe

These heaters transmit heat through both conduction & radiation. The element winding is designed to heat the ceramic blocks to the point at which they radiate energy into the barrel as well as conduct energy by being in contact with the barrel - fit is not as critical as in other types of bands.

Construction

Protherm ceramic band heaters are computer designed and manufactured to your specifications. Only the highest quality materials are used for optimal performance.

  • High temperature oxidation resistant stainless steel sheath.
  • Ceramic fiber thermal insultaion keeps outer sheath cool and maximizes energy efficiency.
  • Clamps are attached directly to the outer sheath providing maximum clamping force.
  • Nickel/Chromium resistance wire evenly would for uniform heat distribution and reliable accuracy.
  • High impact, high temperature ceramic "knuckles" encase the resistance wire for electrical protection and maximum heat transfer.
More Information
Diameter5"
Width4"
Voltage240v
Wattage2200
TerminationPost Terminals
