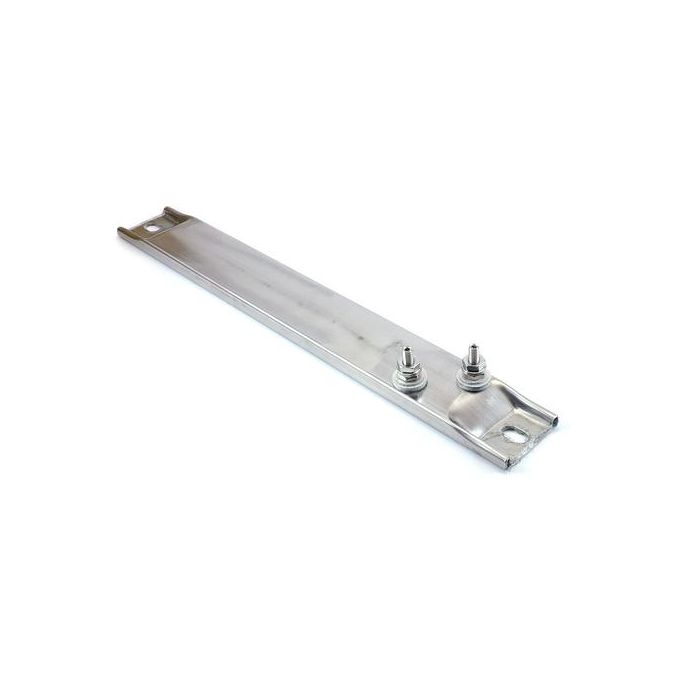

3/8 x 1.50 x 26.75 Inch Ceramic Strip Heater 240V 700/1000 watts with post terminals parallel to width at one end and standard mounting tabs.
Diameter: 0.370″
Watts: 700/1000 watts
Voltage: 240
Length: 26.75″
Width: 1.5″
Ceramic strip heaters offer high temperature performance in a rugged, contamination resistant stainless steel sheath. They are bolt-in replacements for Chromalox, GE, Watlow, and other channel strip heaters.
They are available with a stainless steel sheath (for temperatures up to 1200°F), with or without mounting tabs, and can be manufactured with post terminals or a variety of lead options.
Ceramic strip heaters are constructed with a using chromium resistance wire coil inside a ceramic core which is then inserted in a metal sheath and filled with magnesium oxide for maximum heat transfer. This construction provides the long life necessary for tough applications.
