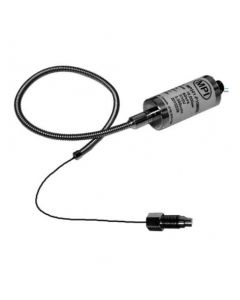

Narrow Space Transducers - Bare Capillary

10” Bare Capillary + 18” flexible capillary with stainless armour coating.

This provides thermal isolation and installation flexibility in space restricted areas.

Features:

  • Fluid Filled System
  • Standard 3.33mV/V
  • 6pin Bayonet Connector
  • 10" 0.06" Diameter Capillary
  • 18” Flex Hose
  • 0.5% combined error
  • 80% Output Calibration
  • Interchangeable with all Competitor’s models
  • 750°F (400°C) Rating
  • Ranges from 5000 to 30,000 psi
  • Standard Inconel Diaphragm

Options:

  • Output option - 2.5mV/V, 4-20mA, 0-5VDC & 0-10VDC
  • Connector option - 8 pin - 6 pin-CANNON
  • 12" stem
  • 30" Flex hose (MR200)
  • Optional diaphragms - Hastelloy, Titanium Nitride, Inconel Tip & Diamond Particulate
  • Thread Options
  • Fill Options - Mercury Free & NaK

Call 615-834-4044 to order transducers with options not listed below.
